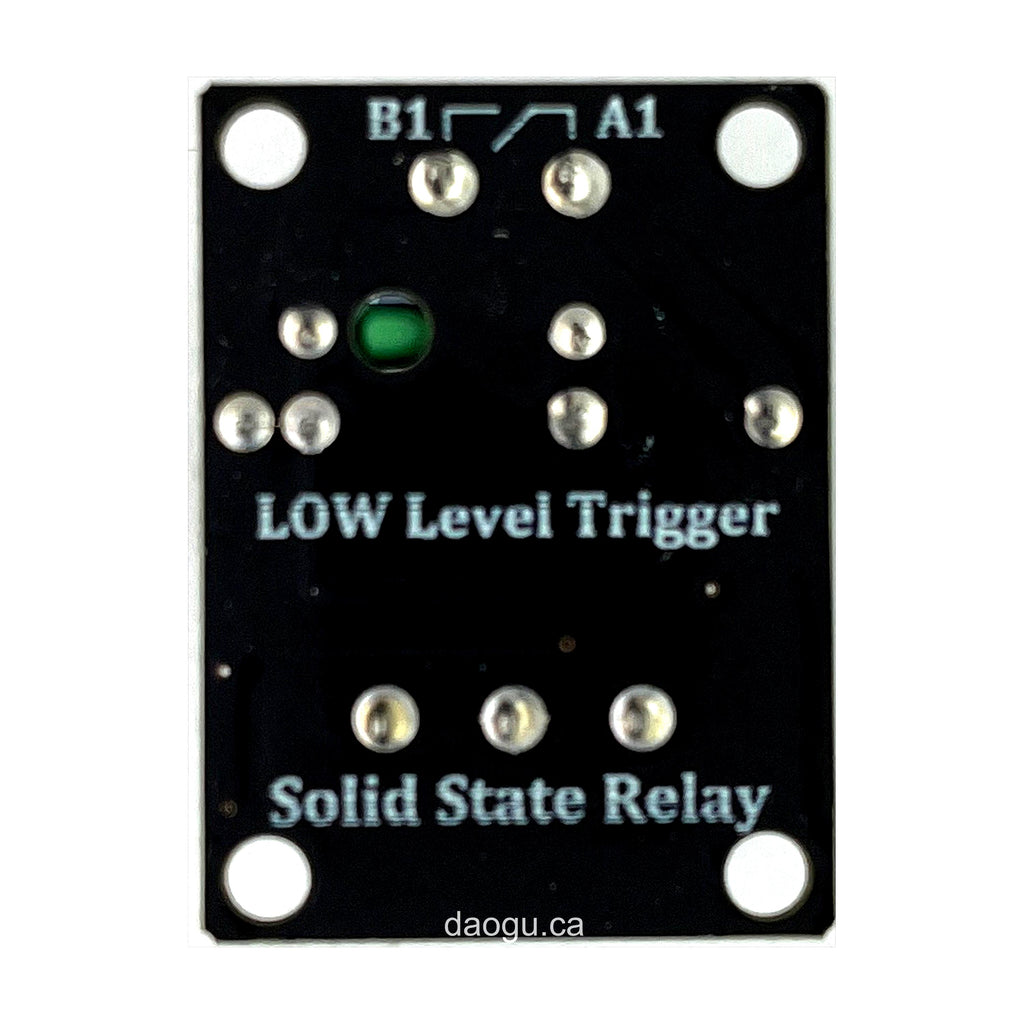

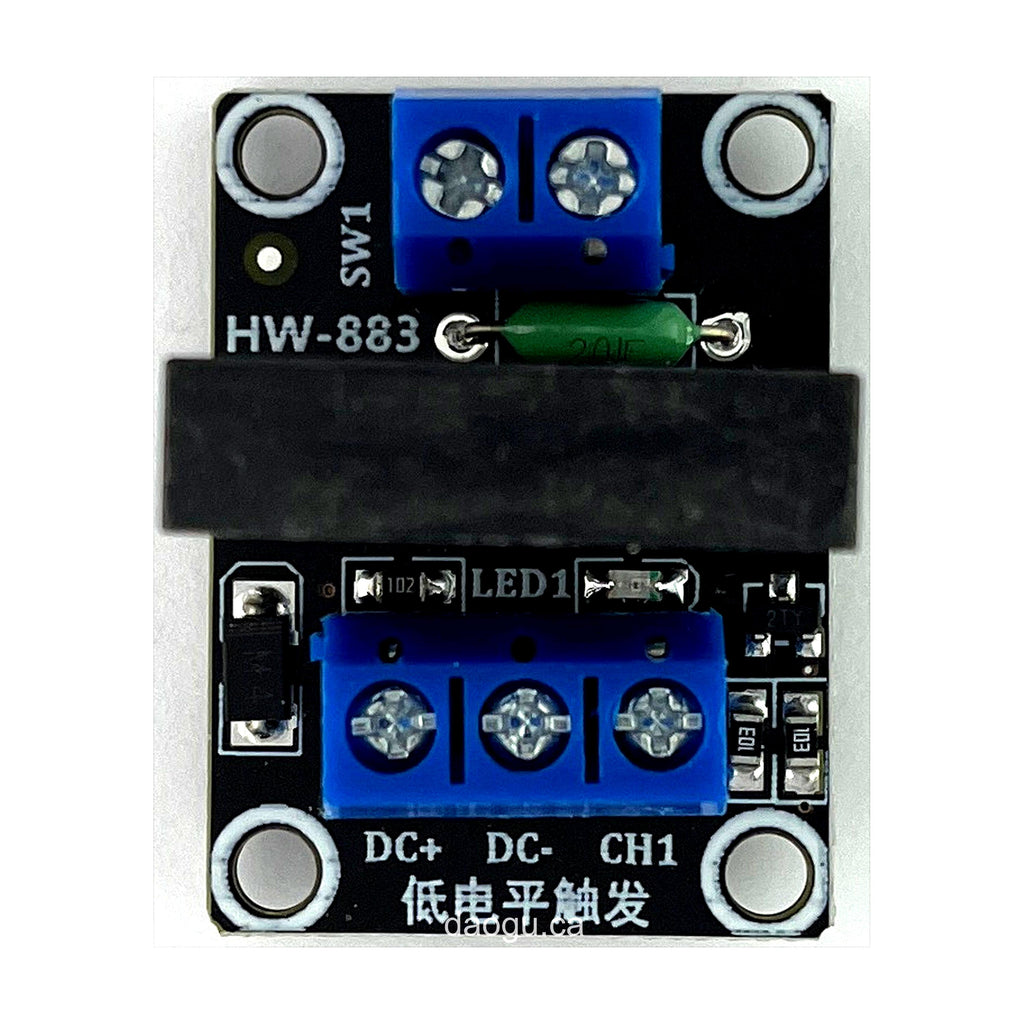

1-Channel 5V Low-Level Trigger Solid State Relay Module with Fuse SSR 250V 2A

1-Channel 5V Low-Level Trigger Solid State Relay Module with Fuse SSR 250V 2A

$4.99
Skip to product information
1-Channel 5V Low-Level Trigger Solid State Relay Module with Fuse SSR 250V 2A

1-Channel 5V Low-Level Trigger Solid State Relay Module with Fuse SSR 250V 2A

$4.99

About This Item

  • Adopting AC solid-state relays with high quality
  • Strong anti-interference ability and stable performance
  • Low control current and high load power
  • It has the function of reverse power connection, and the wrong module will not be damaged
  • Each route has a status indicator light, and the status is clear and visible
Shipping Information
  • Free Shipping on orders over $80
  • Orders are shipped from Vancouver, Canada
  • Estimated delivery time: 2–10 business days
  • Delivery time may vary depending on destination and local carrier conditions

Product parameters
Power supply voltage: 5V
Static current: 0mA
Working current: ≤ 13.8mA
Trigger method: low-level trigger
Load voltage: 240VAC
Load current: 2A
Module lifespan: 10 million times
Switching frequency: ≤ 5KHz
Structural dimensions: 25X34X25mm (length x width x height)
Positioning hole size: 17.4X28.4mm
