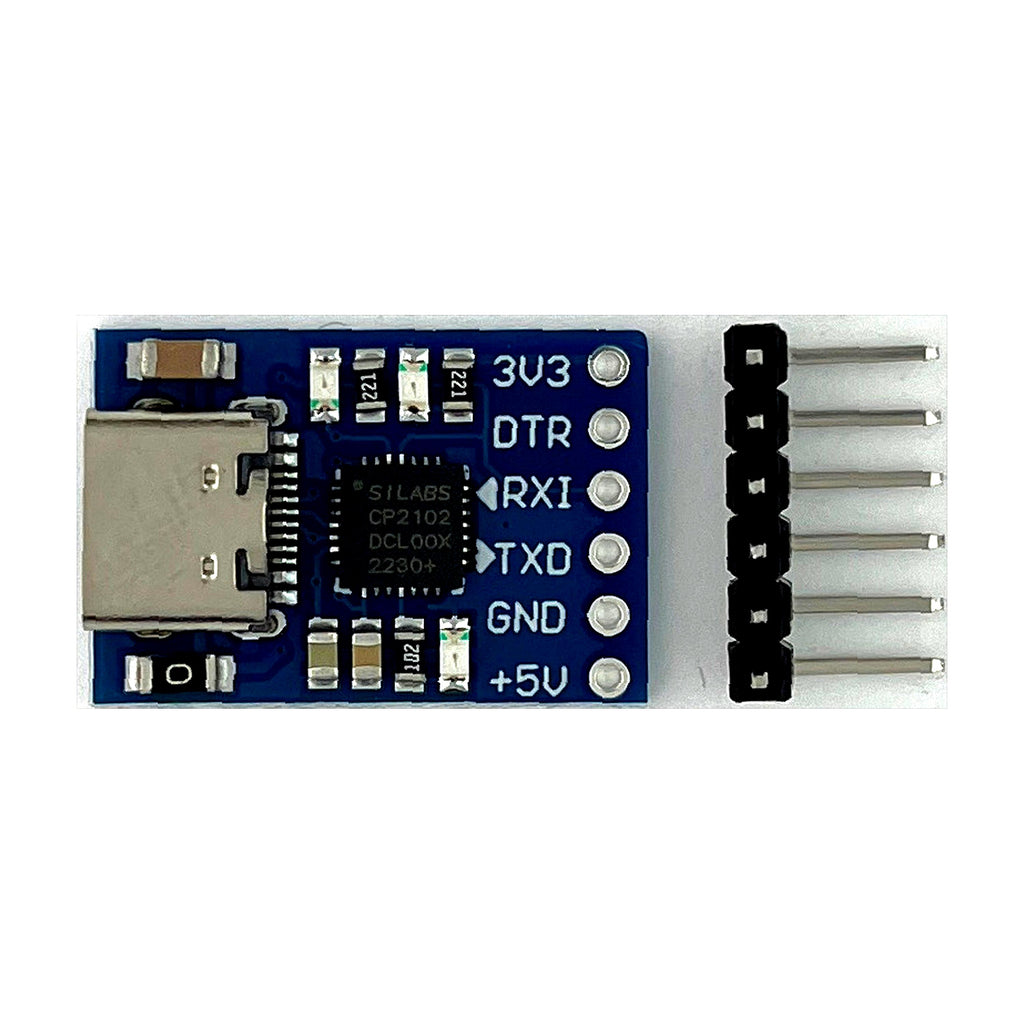

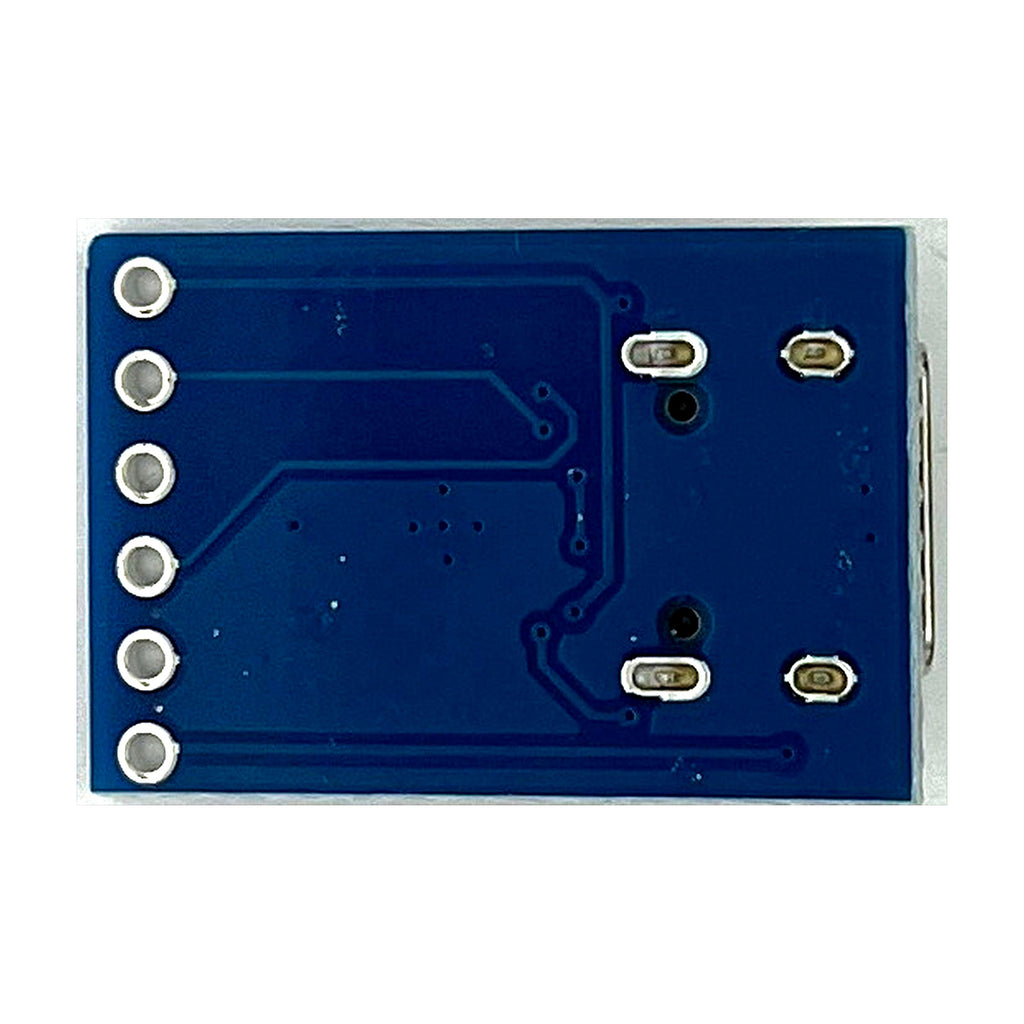

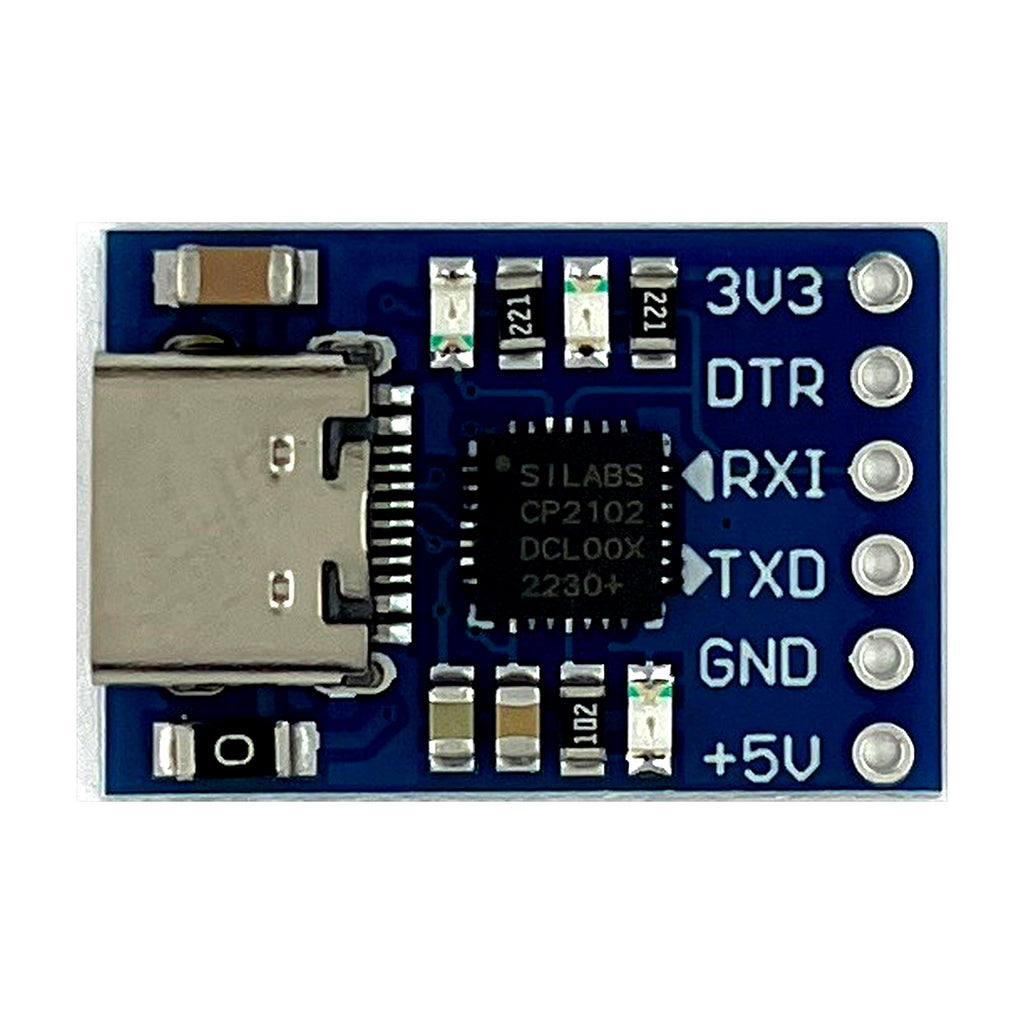

TYPE-C USB Interface CP2102 Module USB to TTL USB to Serial Port UART STC Downloader

Product Description:

The CP2102 features a high level of integration, incorporating a full-speed USB 2.0 function controller, USB transceiver, crystal oscillator, EEPROM, and an asynchronous serial data bus (UART). It supports full modem control signals and requires no external USB components. The CJMCU-CP2102 operates on a principle similar to other USB-UART bridge circuits, virtualizing the PC's USB port as a COM port via a driver to achieve expansion purposes.

The CJMCU attitude module communication USB to TTL module with 5V power output, featuring a TTL level CP2102 core, is a highly integrated USB-to-UART bridge. It provides a simple solution for updating RS232 to USB interfaces using a minimum of components and PCB space. In simple terms: users can use the CJMCU-CP2102 to convert between USB interfaces and RS232 interfaces.

Module Specifications:

1. Utilizes the CP2102 chip; generates a COM port after driver installation.
2. Connects via a standard MICRO MINI-USB input to a computer's USB interface. Provides both 3.3V and 5V power outputs.
3. Features onboard status indicator and transmission/reception LEDs. After correct driver installation, the status LED remains constantly lit. The TX/RX LEDs flash during data communication. Includes a running LED indicator.
4. Supports baud rates from 300bps to 1Mbps.
5. Supported communication formats:Data bits: 5, 6, 7, 8Stop bits: 1, 1.5, 2Parity: odd, even, mark, space, none
6. Supported Operating Systems: Windows 8.1/7/Vista/XP/98, Mac OS-X/OS-9, Linux.
7. USB connector interface: TYPE-C USB socket.
8. SMD components are professionally soldered, ensuring stable quality and an aesthetically pleasing appearance.
9. Features a DTR trigger signal output, allowing direct program downloading and communication with Arduino boards like the Arduino Pro Mini ATMEGA328P.
10. Module Dimensions: 16mm x 20mm (Ultra-Compact).
