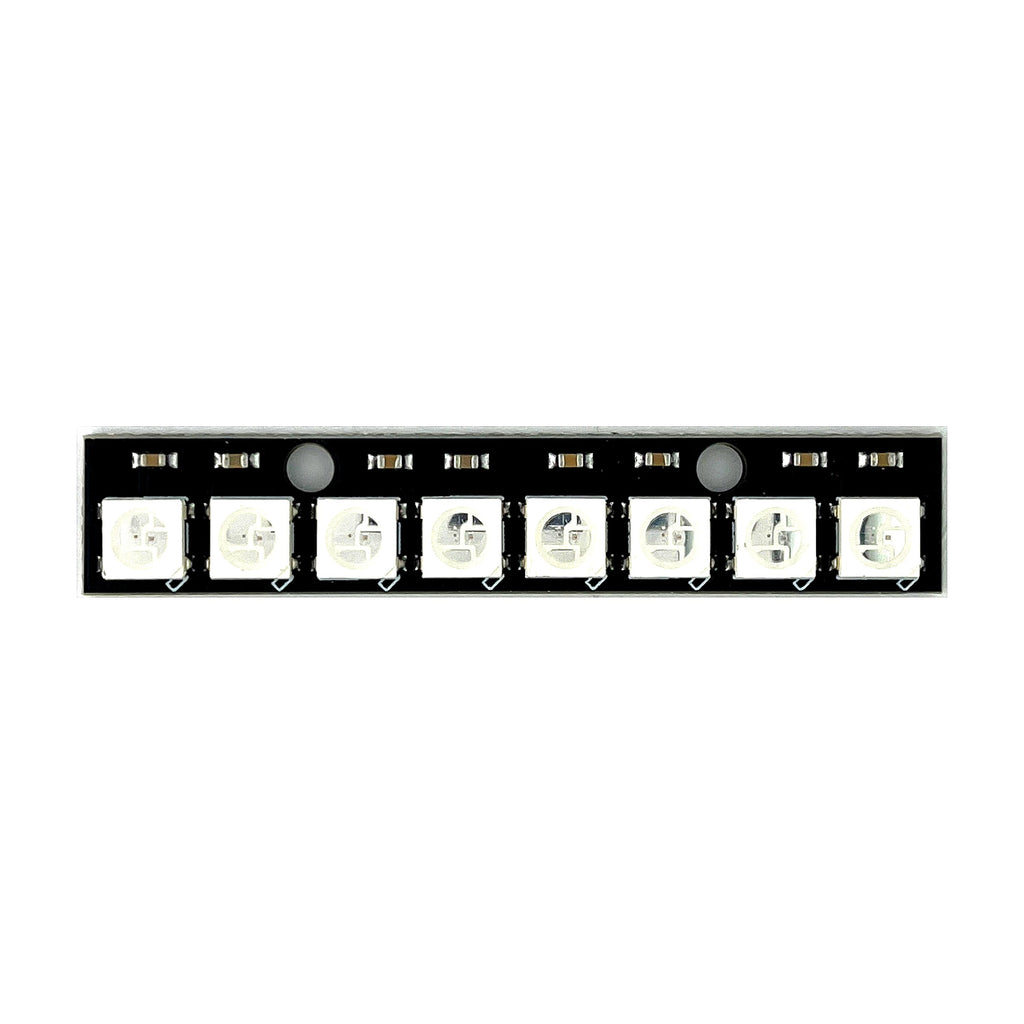

8-Bit WS2812 5050 RGB LED Built-in Full-Color Driver Color Light Development Board WS2812B 256 Colors

Dimensions:
10 x 54 mm

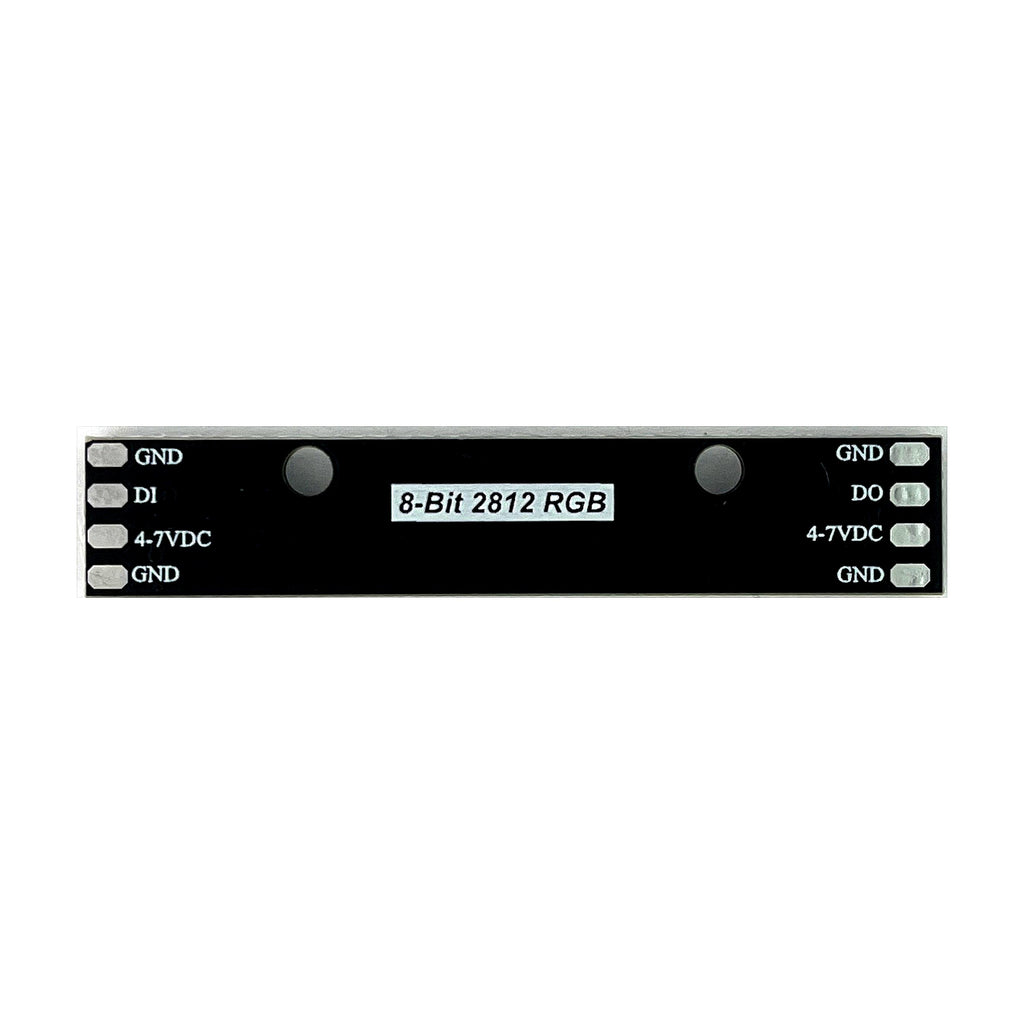

Pin Connections:

• VCC: Connect to Power Positive
• GND: Connect to Power Negative
• IN: Connect to Driver Signal Line

Main Features:

• Smart Reverse Polarity Protection: Reverse power connection will not damage the IC.
• Single power supply for both IC control circuit and LED light source.
• The control circuit and RGB chip are integrated into a single 5050 package component, forming a complete external control pixel point.
• Built-in signal shaping circuit. Any pixel point receives the signal, reshapes the waveform, and then outputs it, ensuring that waveform distortion does not accumulate along the line.
• Built-in power-on reset and power-down reset circuits.
• Each primary color (RGB) of every pixel can achieve 256 levels of brightness, enabling a full true-color display of 16,777,216 colors. The scanning frequency is no less than 400Hz/s.
• Serial cascade interface allows data reception and decoding through a single signal line.
• Transmission distance between any two points up to 5 meters requires no additional circuitry.
• Cascade capability: No less than 1024 points at a refresh rate of 30 frames/second.
• Data transmission speed up to 800Kbps.
• Highly consistent light color and excellent cost performance.

Main Application Areas:

• LED full-color luminous letter strings, LED full-color modules, LED full-color flexible strips and rigid strips, LED guardrail tubes.
• LED point light sources, LED pixel screens, LED shaped screens, running lights for various electronic products and electrical equipment.

Package Includes:
1 x 8-Bit WS2812B Module
