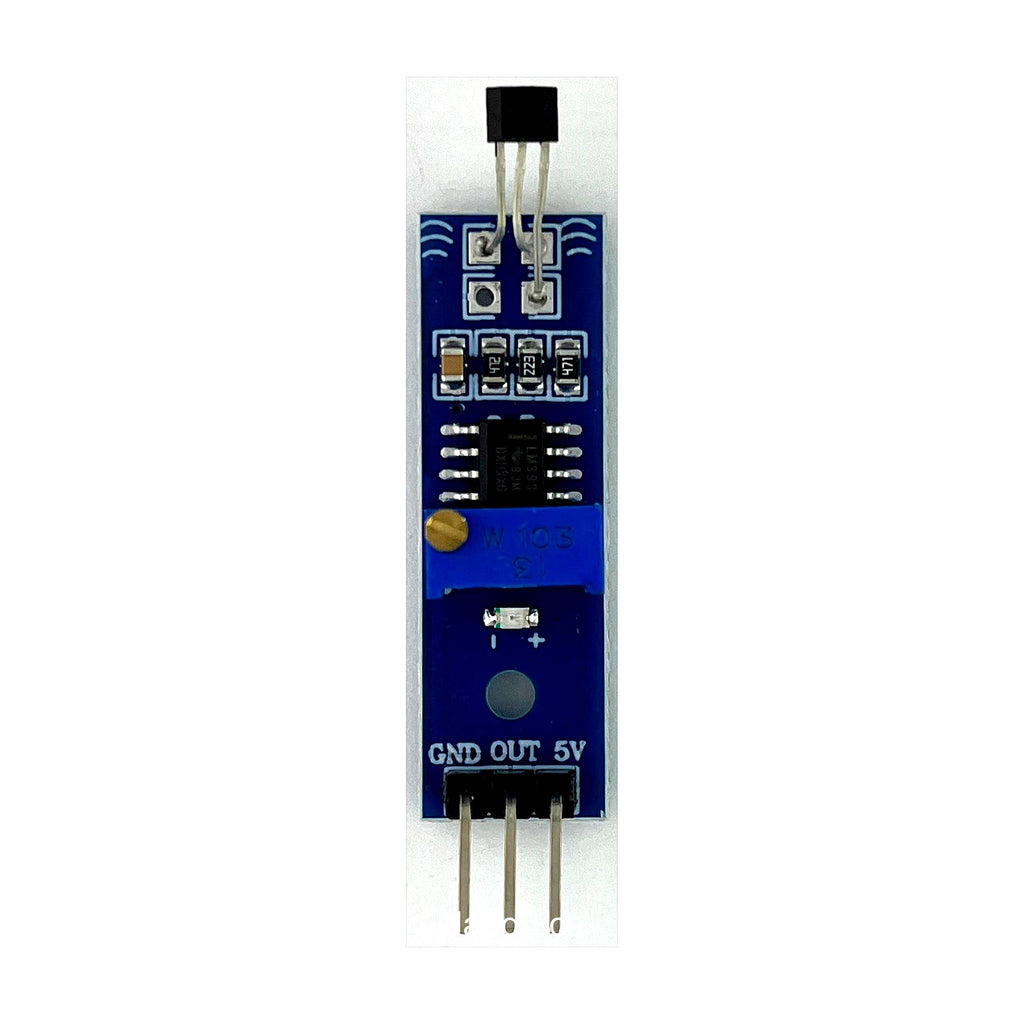

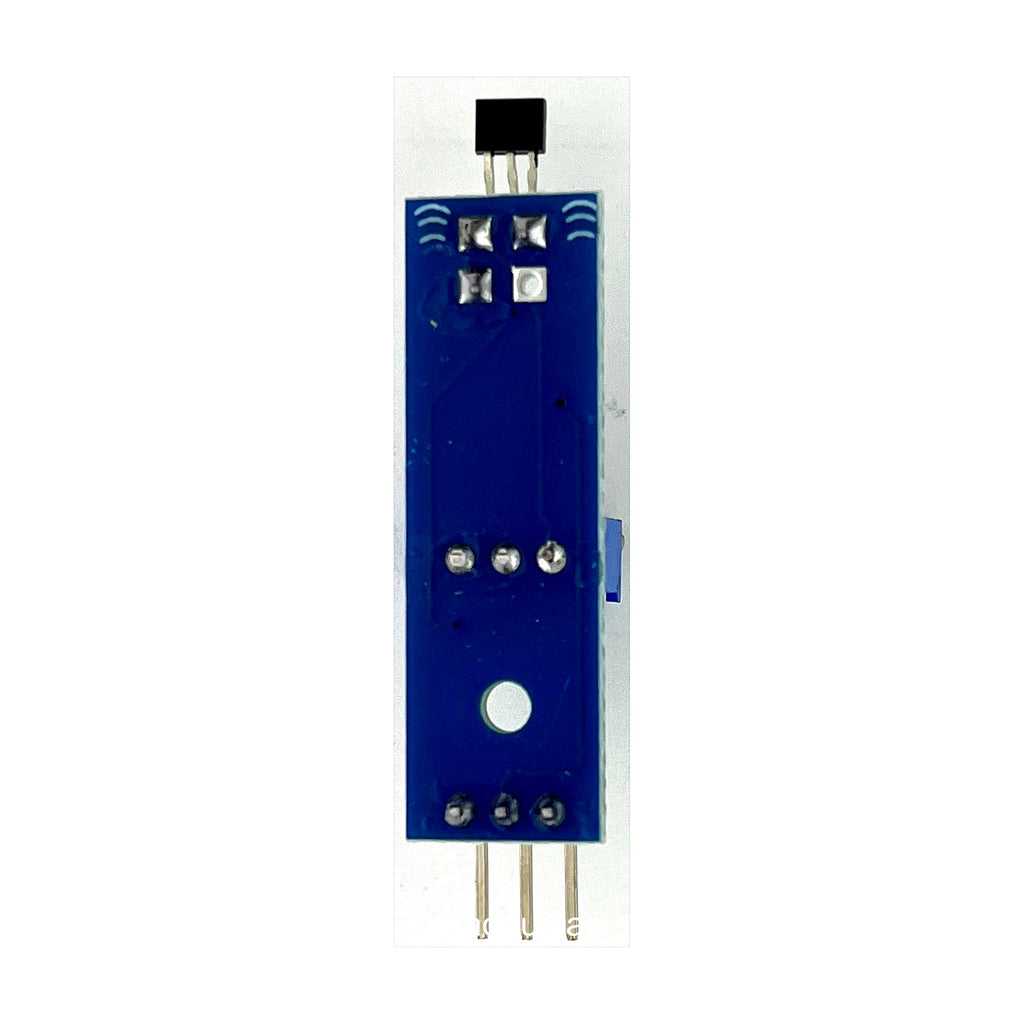

YS-27 Hall Effect Sensor Module Hall Speed Counting Detection Sensor Module / Switch

YS-27 Hall Effect Sensor Module Hall Speed Counting Detection Sensor Module / Switch

$3.00
Shipping Information
  • Free Shipping on orders over $80
  • Orders are shipped from Vancouver, Canada
  • Estimated delivery time: 2–10 business days
  • Delivery time may vary depending on destination and local carrier conditions

1. Dimensions: Length 32mm x Width 11mm x Height 20mm
2. Main Components: LM393 Comparator Chip, 3144 Hall Effect Sensor (Magnetic Probe)
3. Operating Voltage: DC 5V
4. Features:

  • 1. Equipped with a signal output indicator LED.
  • 2. Comes with mounting holes for easy and secure installation.
  • 3. The effective output signal is Low Level (active low).
  • 4. Sensitivity is adjustable (fine tuning).
  • 5. High sensitivity for magnetic field detection.
  • 6. The circuit board outputs a digital switching signal, which can be directly connected to the IO port of a microcontroller.
  • 7. Suitable for applications such as motor speed measurement and position detection.
