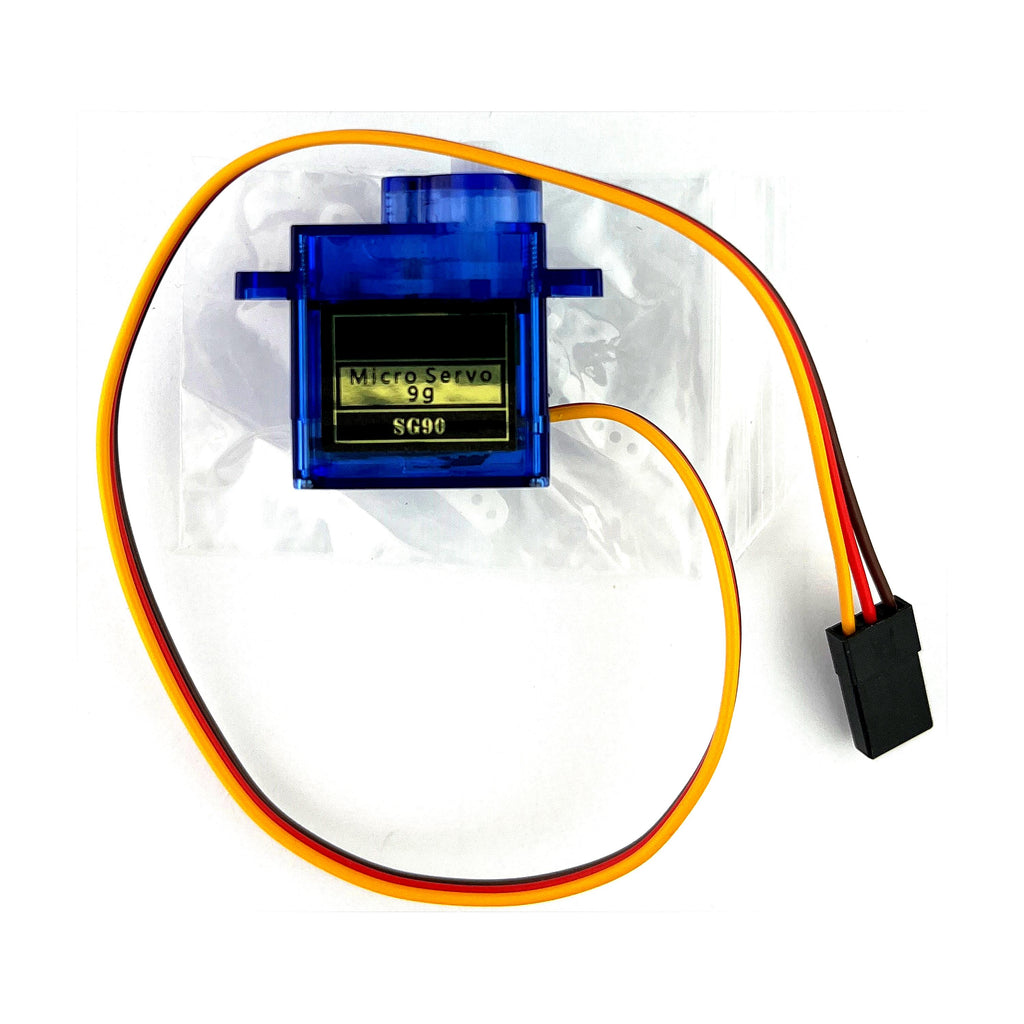

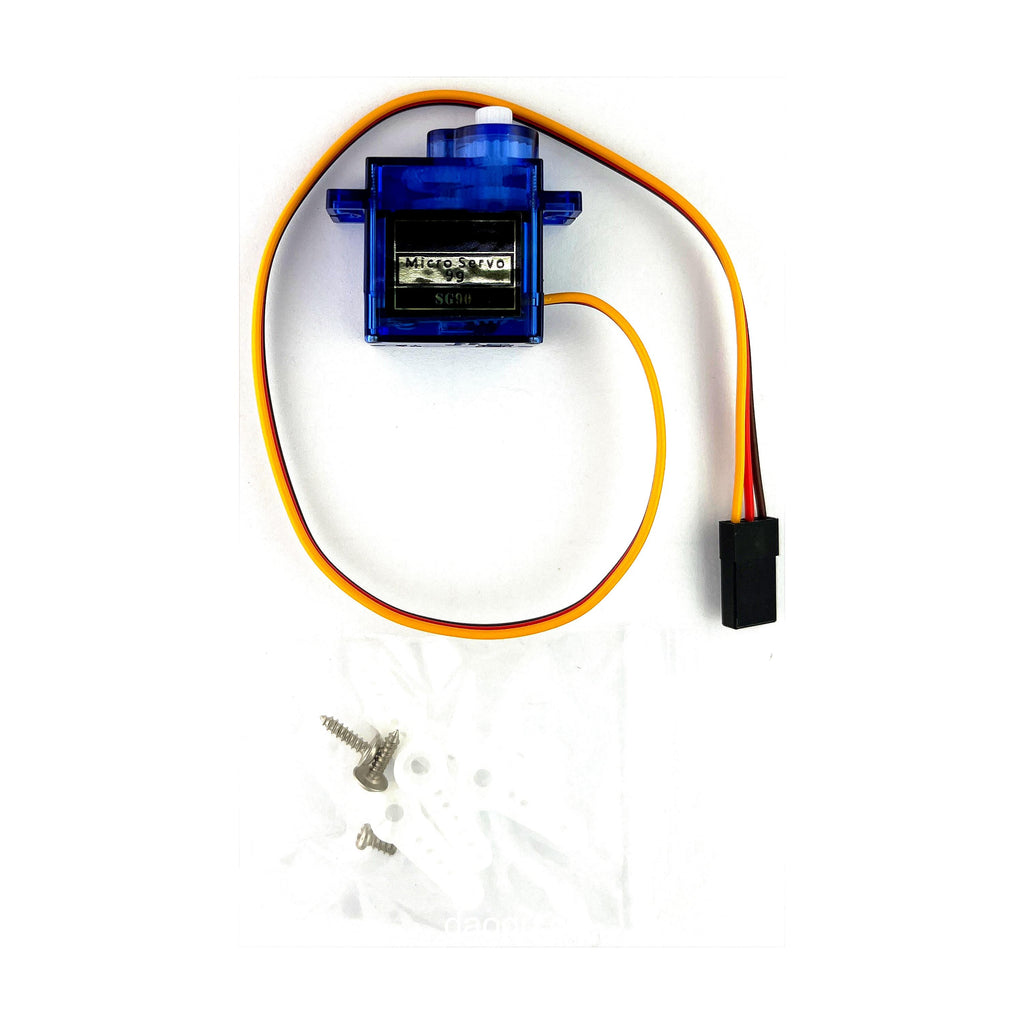

Servo SG90 9g Micro Servo for Fixed-Wing RC Airplane / Model Aircraft 9g Servo

Servo SG90 9g Micro Servo for Fixed-Wing RC Airplane / Model Aircraft 9g Servo

$4.50
Skip to product information
Servo SG90 9g Micro Servo for Fixed-Wing RC Airplane / Model Aircraft 9g Servo

Servo SG90 9g Micro Servo for Fixed-Wing RC Airplane / Model Aircraft 9g Servo

$4.50
Shipping Information
  • Free Shipping on orders over $29
  • Orders are shipped from Vancouver, Canada
  • Estimated delivery time: 2–10 business days
  • Delivery time may vary depending on destination and local carrier conditions
  • This item can be returned in its original condition for a full refund or replacement within 30 days of receipt.


Rotation Angle: 0-180 degrees

Servo Wire Definition (3 wires):

  • Dark Grey: GND
  • Red: VCC 4.8-7.2V
  • Orange/Yellow: Pulse Input

Specifications:

  • Wire Length: 20cm
  • Dimensions: 23mm x 12.2mm x 29mm
  • Weight: 9g
  • Torque: 1.5kg/cm
  • Operating Voltage: 4.2-6V
  • Temperature Range: 0℃ -- 55℃
  • Operating Speed: 0.3 sec/60°
  • Dead Band Width: 10μs
