ESP32C3 Super Mini

$3.99

ESP32C3 Super Mini

Name: ESP32C3 Super Mini
Brand: Daogu
Price: 3.99 CAD
Availability: InStock

$3.99

About This Item

Ultra-compact design with ESP32-C3 RISC-V core
Built-in Wi-Fi and Bluetooth LE for seamless connectivity
Low-power consumption, ideal for battery-powered projects
Compatible with Arduino and MicroPython
Open-source, community-supported, and easy to prototype

Shipping Information

Free Shipping on orders over $80
Orders are shipped from Vancouver, Canada
Estimated delivery time: 2–10 business days
Delivery time may vary depending on destination and local carrier conditions

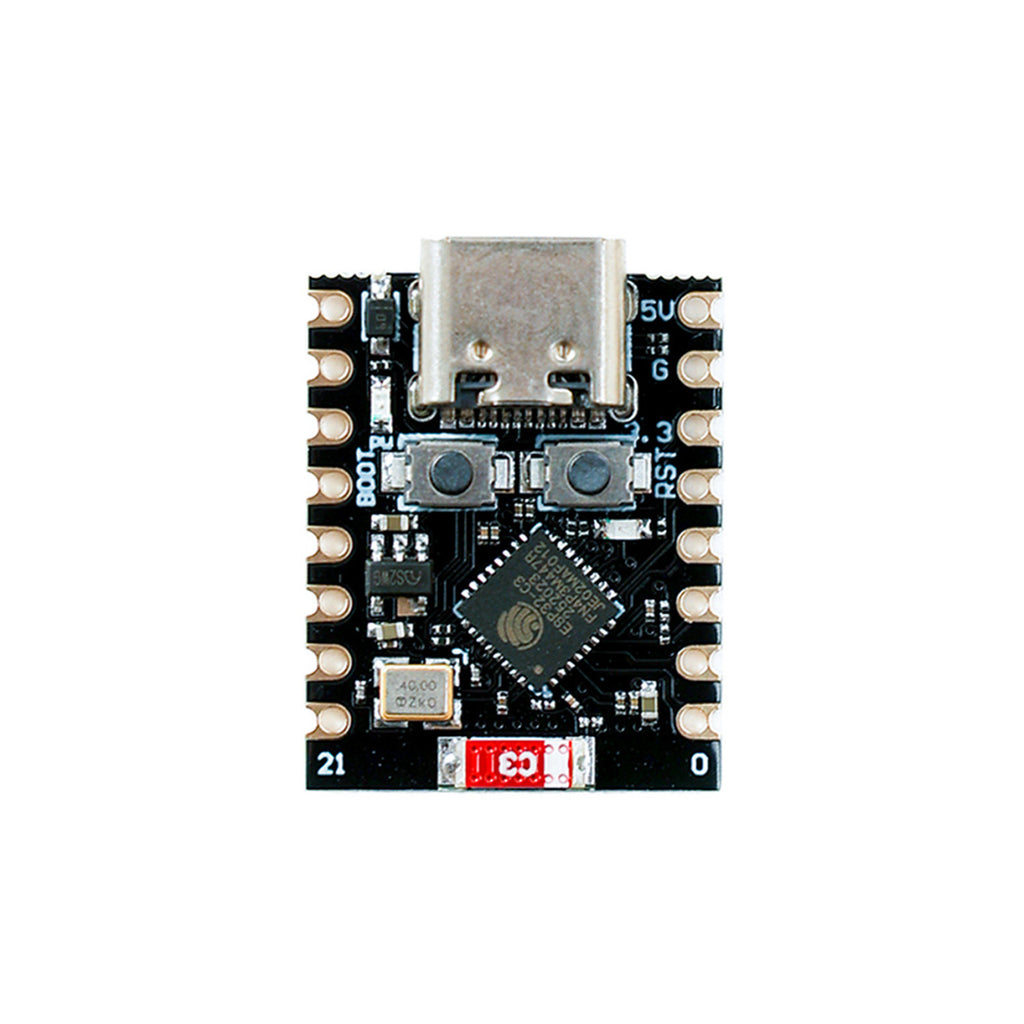

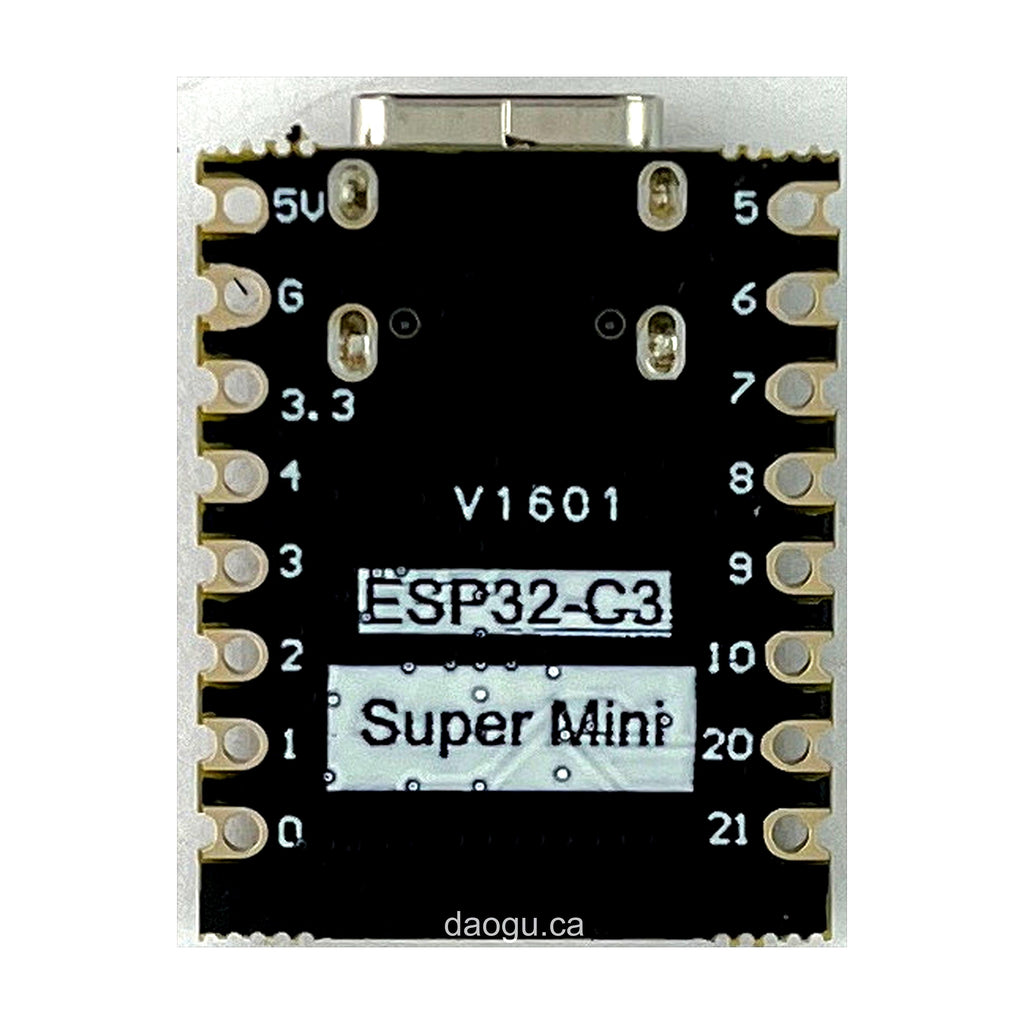

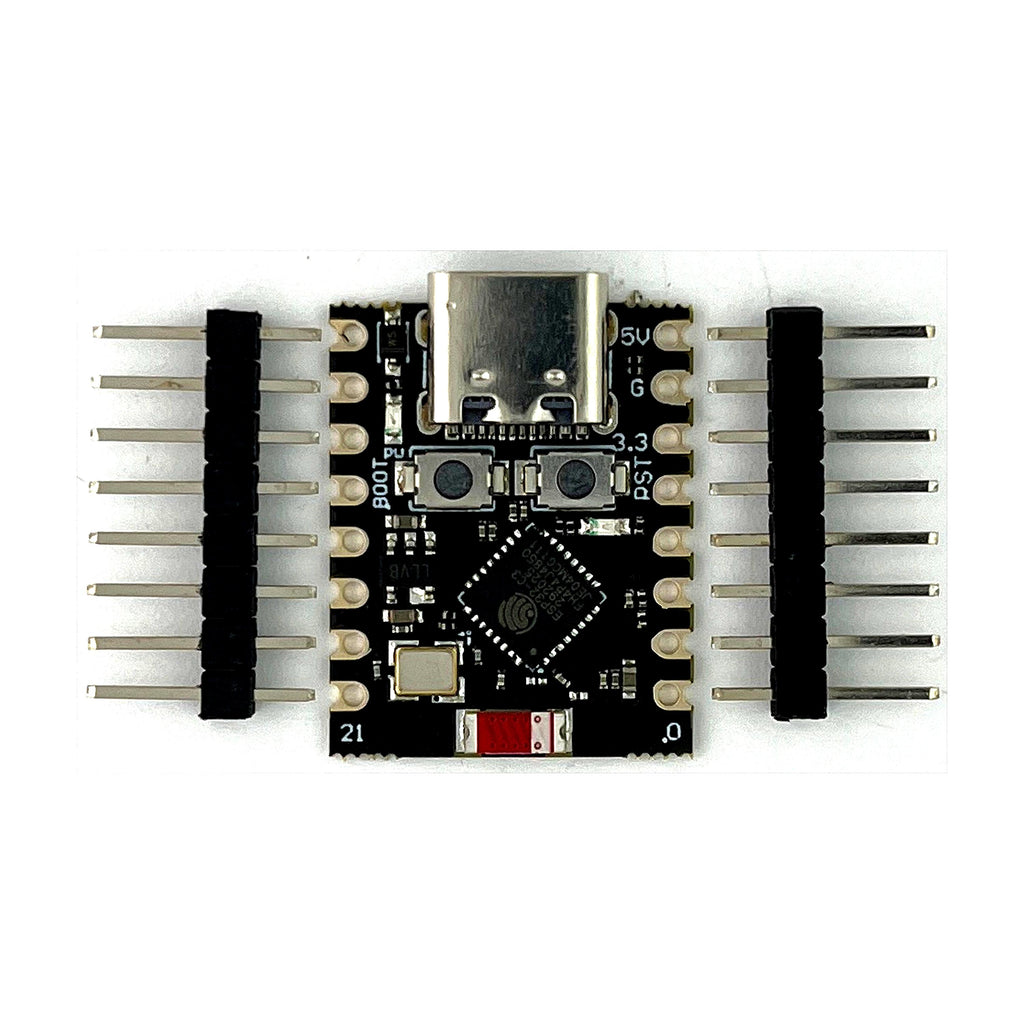

ESP32-C3 Super Mini – Compact Yet Powerful
The ESP32-C3 Super Mini is perfect for your everyday IoT projects. Designed with versatility and efficiency in mind, it’s a tiny board that delivers big performance. A more flexible and cost-effective alternative to standard microcontrollers.

Product Specifications

Powerful CPU: ESP32-C3, 32-bit RISC-V single-core processor, operating at up to 160 MHz

WiFi: 802.11b/g/n protocol, 2.4 GHz, supports Station mode, SoftAP mode, SoftAP+Station mode, and promiscuous mode

Bluetooth: Bluetooth 5.0

Ultra-Low Power Consumption: Deep sleep power consumption approx. 43μA

Rich Onboard Resources: 400KB SRAM, 384KB ROM, built-in 4MB Flash
Chip Model: ESP32C3FN4

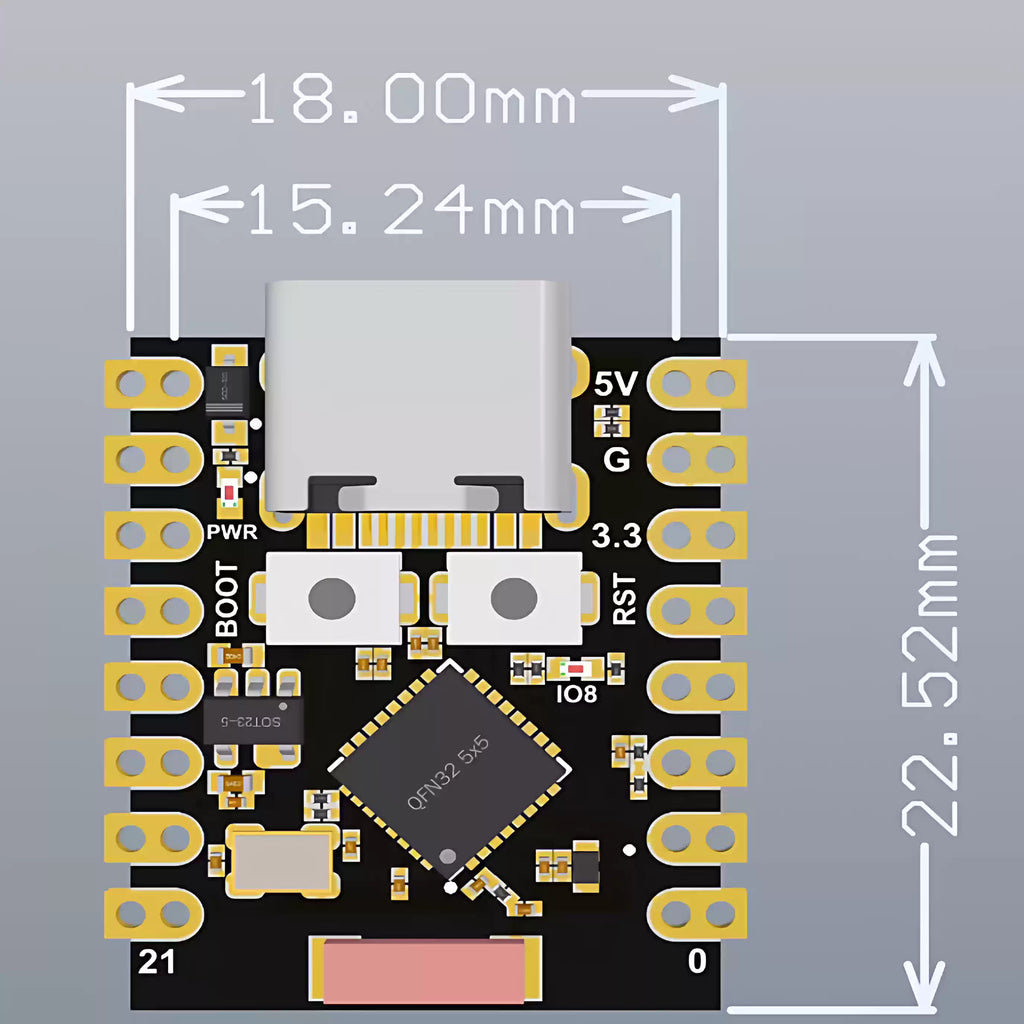

Ultra-Compact Size: Fits on a thumbnail (22.52 x 18mm), classic form factor suitable for wearable devices and small projects

Reliable Security Features: Cryptographic hardware accelerators supporting AES-128/256, Hash, RSA, HMAC, digital signature, and secure boot

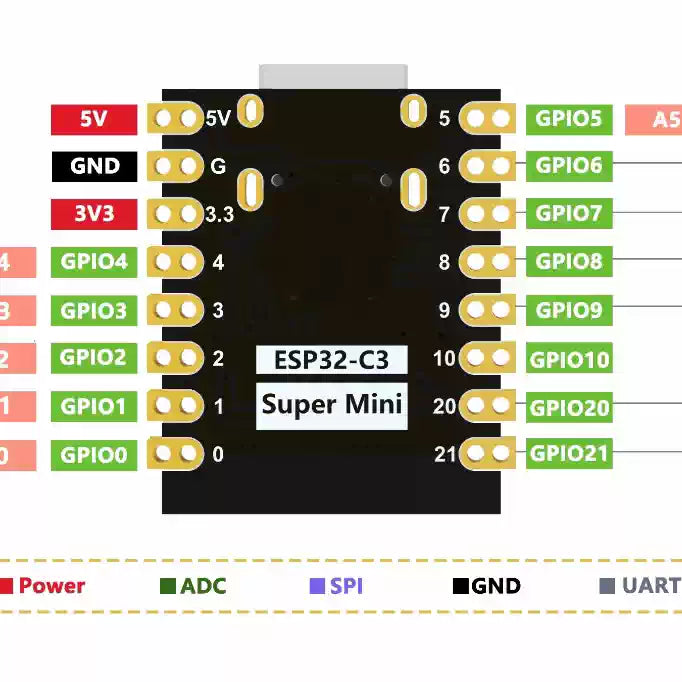

Rich Interfaces: 1x I²C, 1x SPI, 2x UART, 11x GPIO (PWM capable), 4x ADC

Design: Single-sided components, surface-mount design

Onboard LED (Blue): Connected to GPIO8 pin
