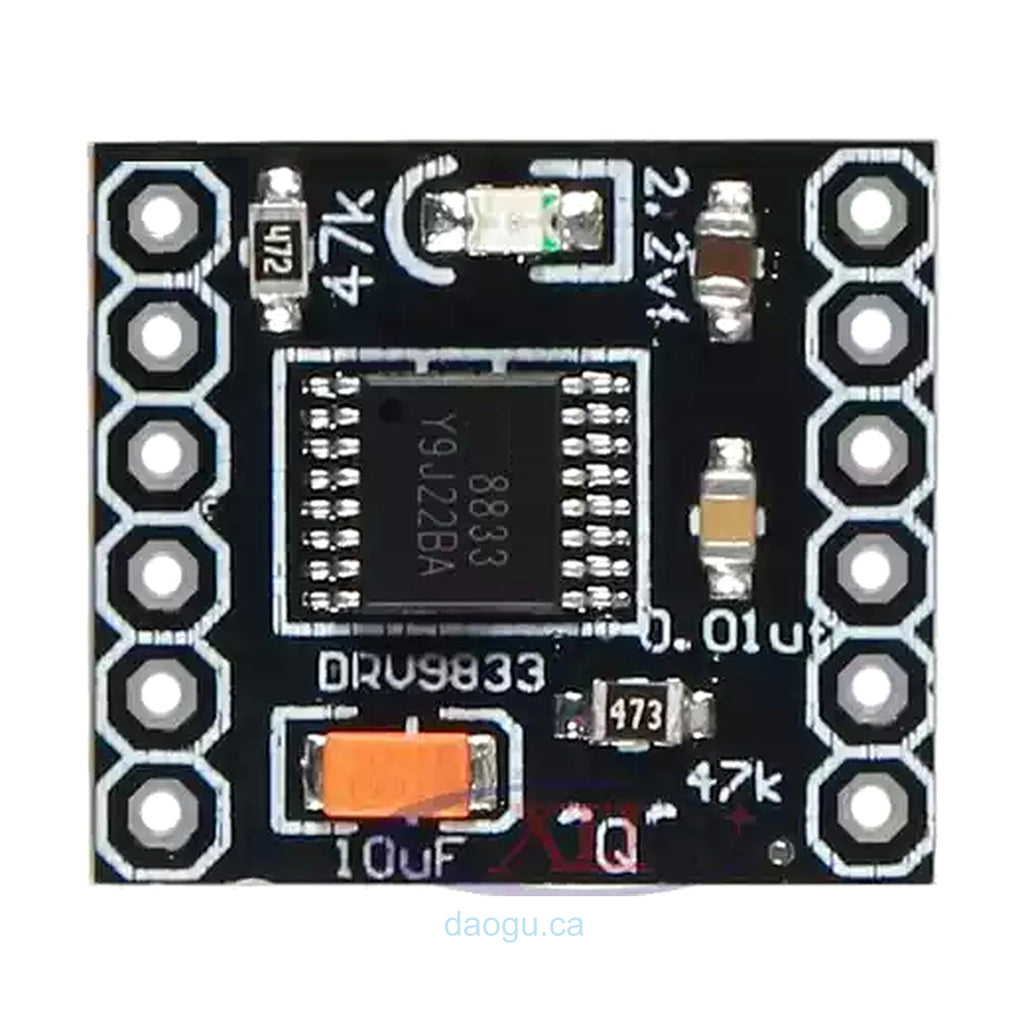

Mini DC Motor Driver Board 2-Channel Motor Driver Module DRV8833 Motor Driver Module

Parameters:

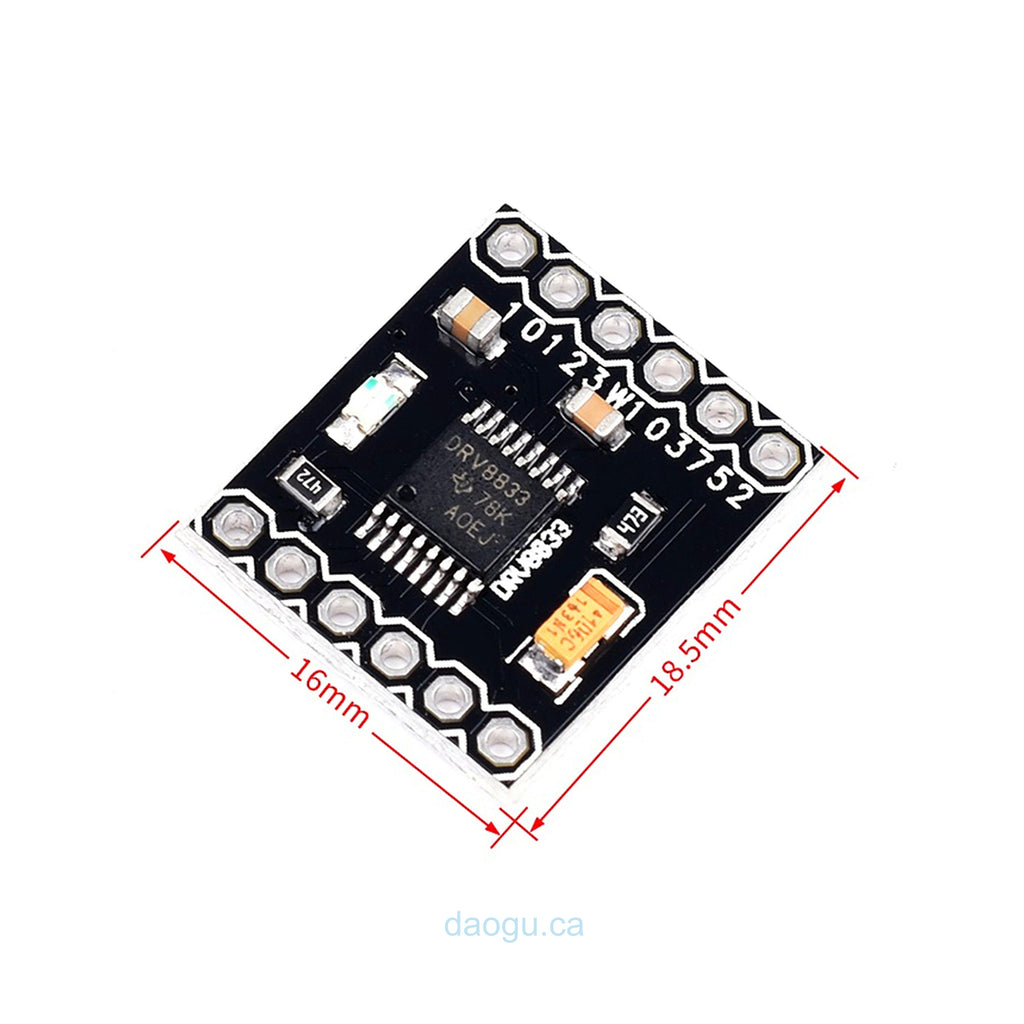

• Dimensions: 18.5*16mm
• Input Voltage: 3 – 10V
• Output Current per H-Bridge: 1.5A (Can drive 2 DC geared motors)
• Protection Features: Built-in Overcurrent Protection, Short Circuit Protection, Undervoltage Lockout, and Thermal Shutdown. Features a Low-Power Sleep Mode.
• Application: Can drive DC motors under 1.5A and 4-wire stepper motors.

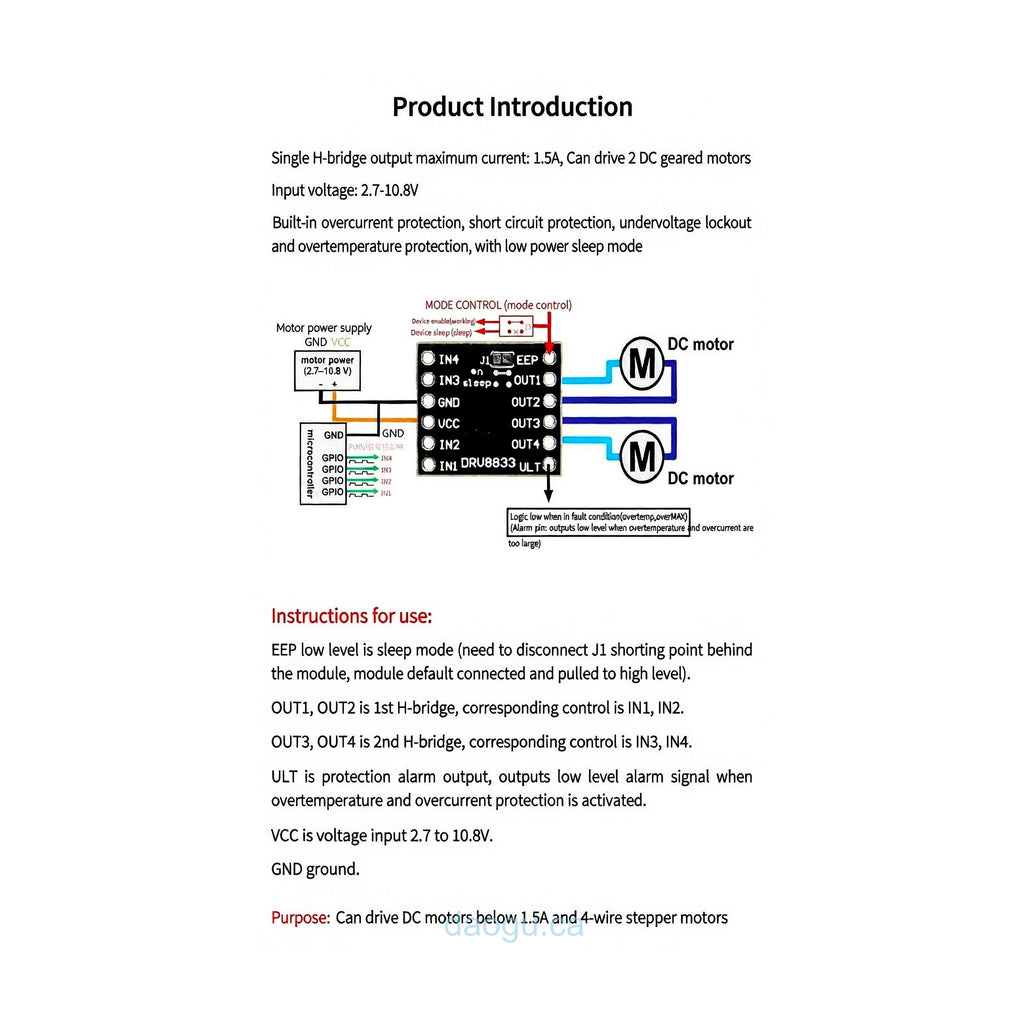

Instructions:

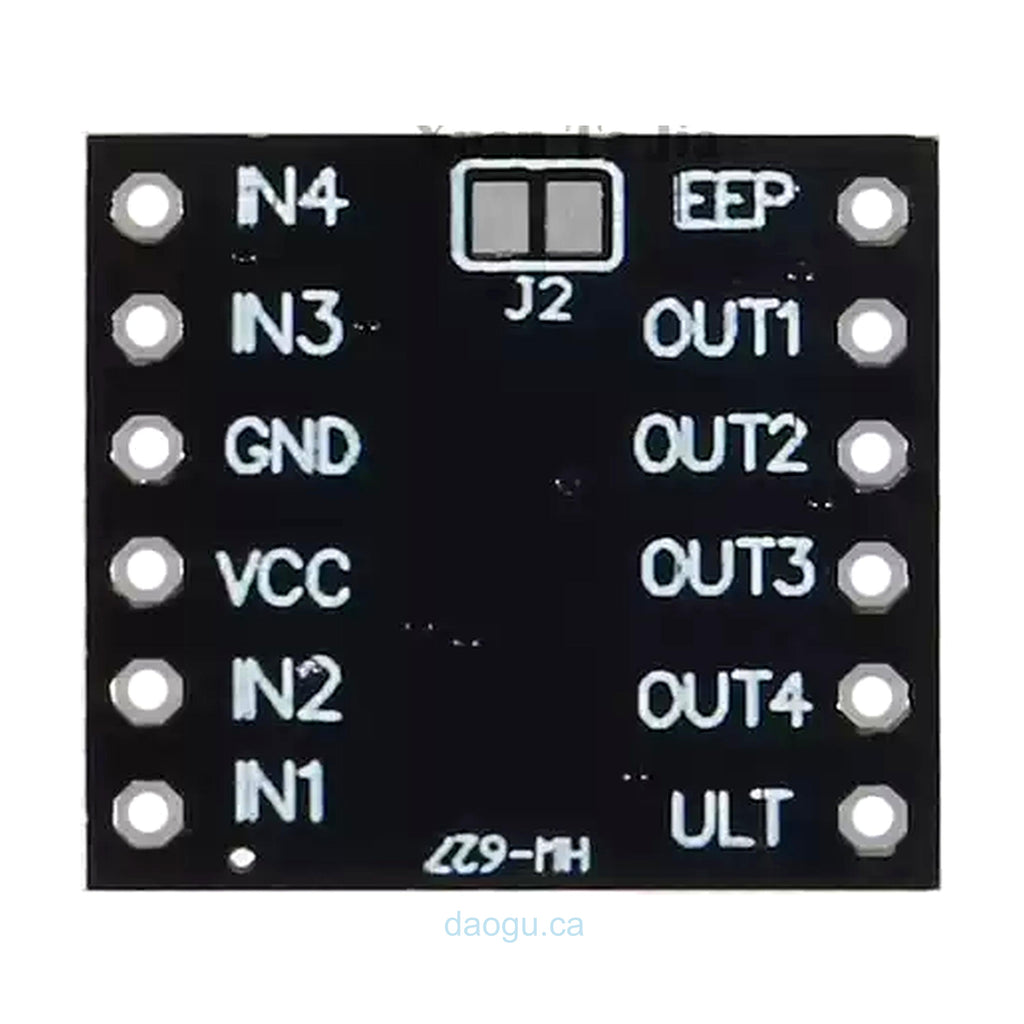

• ULT: Set to Low level for Sleep Mode (Requires disconnecting the J2 solder jumper on the back of the module).
• OUT1, OUT2: First H-Bridge output; controlled by IN1, IN2 respectively.
• OUT3, OUT4: Second H-Bridge output; controlled by IN3, IN4 respectively.
• EEP: Fault output pin (can be left unconnected by default).
• VCC: Power supply input (3V to 10V).
• GND: Ground connection.
