CN5711 LED Driver Module DC 3.3/3.7/5V LED Driver 30-1500mA Constant Current Adjustable

CN5711 LED Driver Module - Product Page Description (English)

Overview:

The CN5711 is a constant current modulation integrated circuit capable of delivering an output current of up to 1.5A, designed to drive various types of LEDs, including white LEDs. The LED current is set by an external resistor, adjustable from 30mA to 1.5A. An integrated power transistor minimizes the need for external components. Additional features include die temperature modulation and a chip enable input.

The CN5711 requires few external components, is easy to use, supports multiple dimming modes, and offers high efficiency, making it ideal for portable applications.

Key Features:

• Wide Operating Voltage: 2.8V to 6V
• Integrated Power Transistor (Built-in)
• Low Dropout Voltage: 0.35V @ 1.5A
• Adjustable Output Current: Up to 1.5A
• Output Current Accuracy: ±5%
• Die Temperature Modulation (for thermal protection)
• Overcurrent Protection
• Wide Operating Temperature Range: -40℃ to +85℃

Technical Specifications:

Model:CN5711 LED Driver Module
Type:Constant Current LED Driver
Chipset:CN5711
Operating Voltage:2.8V - 6V DC (Compatible with 3V, 3.3V, 3.7V, 4.5V, 5V, 6V supplies)
Output Current:30mA - 1500mA (Adjustable)
Max Output Power:9W

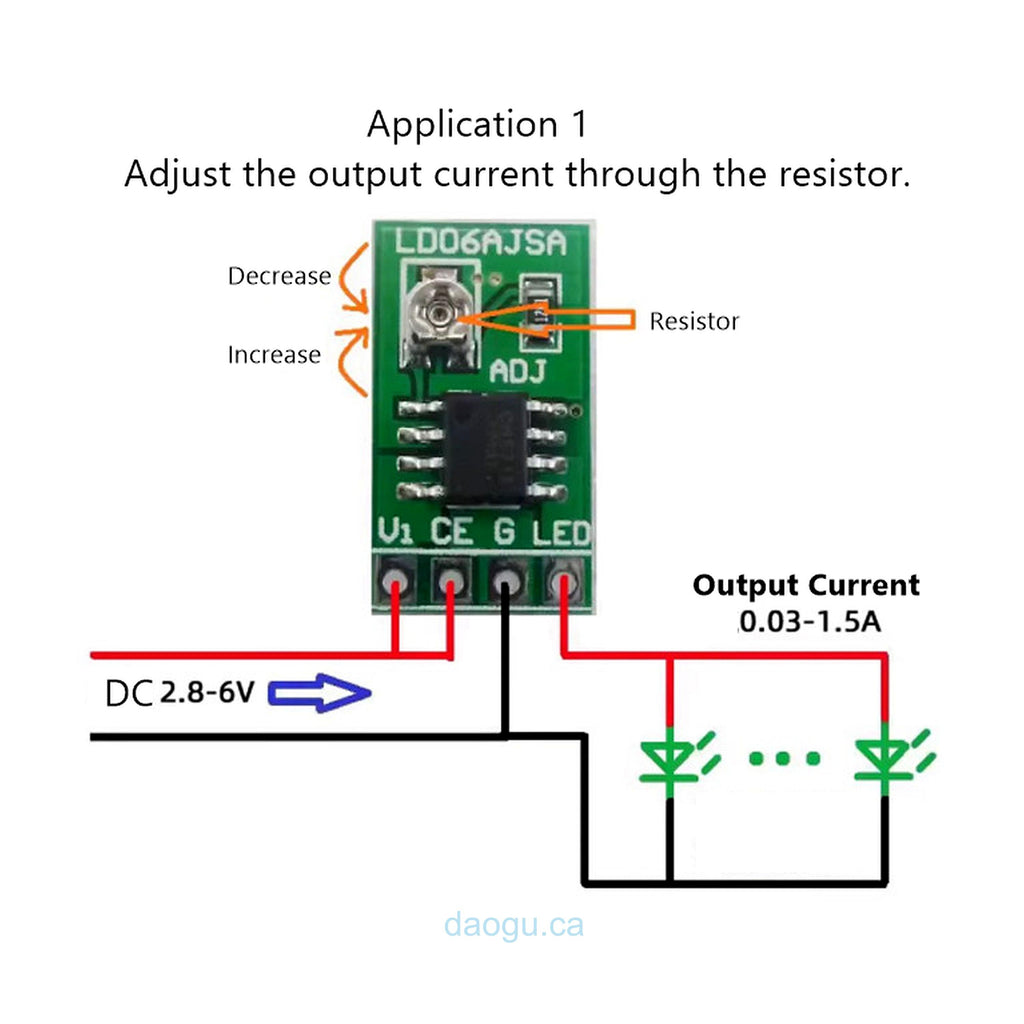

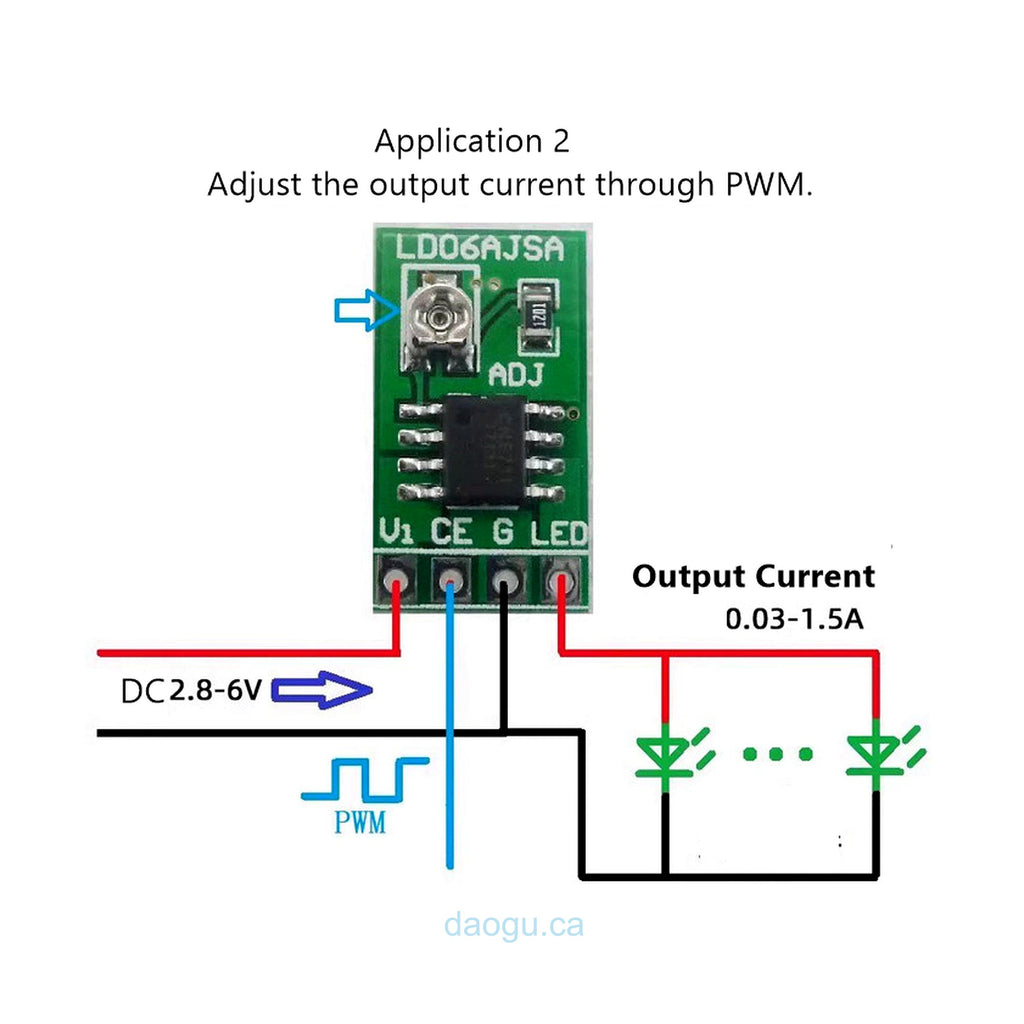

Current Adjustment:1. Variable Resistor; 2. PWM Signal
Output Current Accuracy:±5%
PWM Frequency:< 2kHz
Interface:2.54mm Pitch Pin Header
Operating Temperature:-40℃ to +85℃
Dimensions:18mm x 10mm (L x W)
Note:Dimensions are manually measured, slight tolerances may apply.

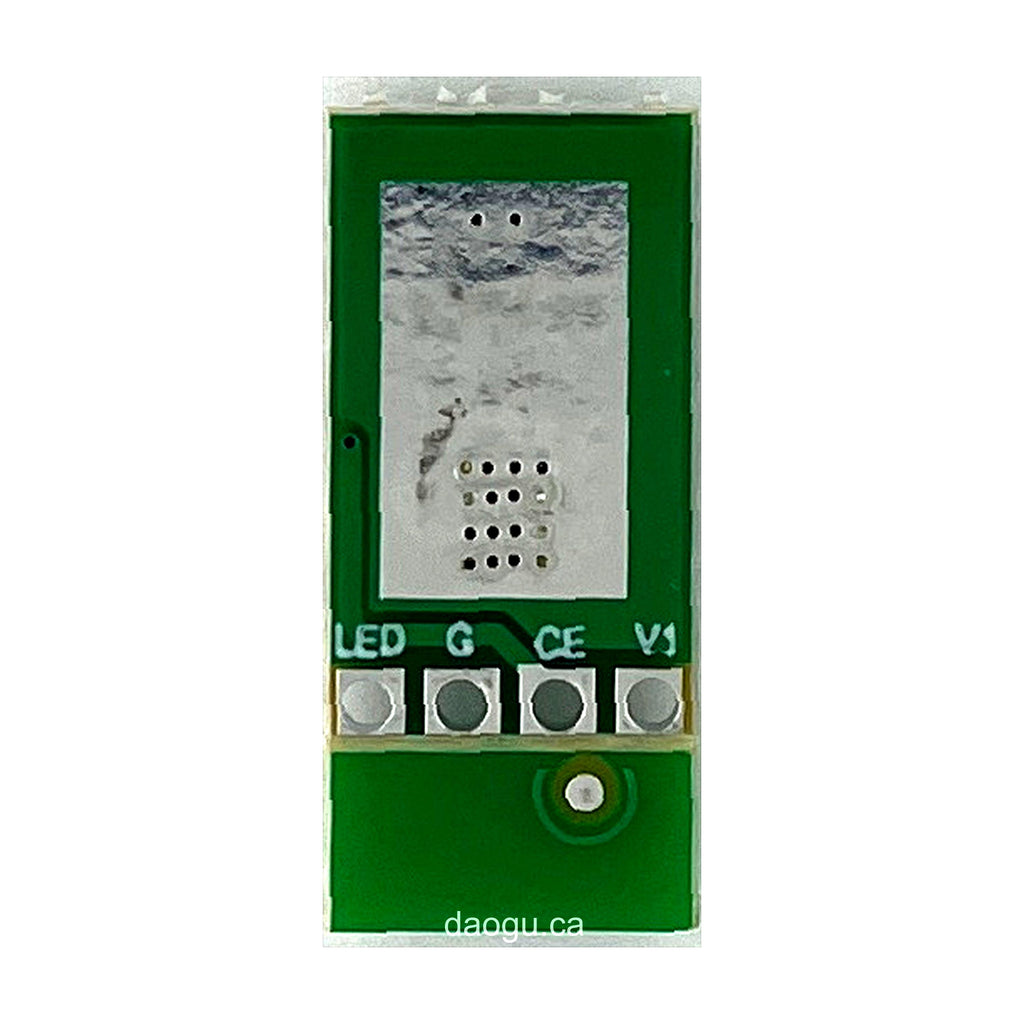

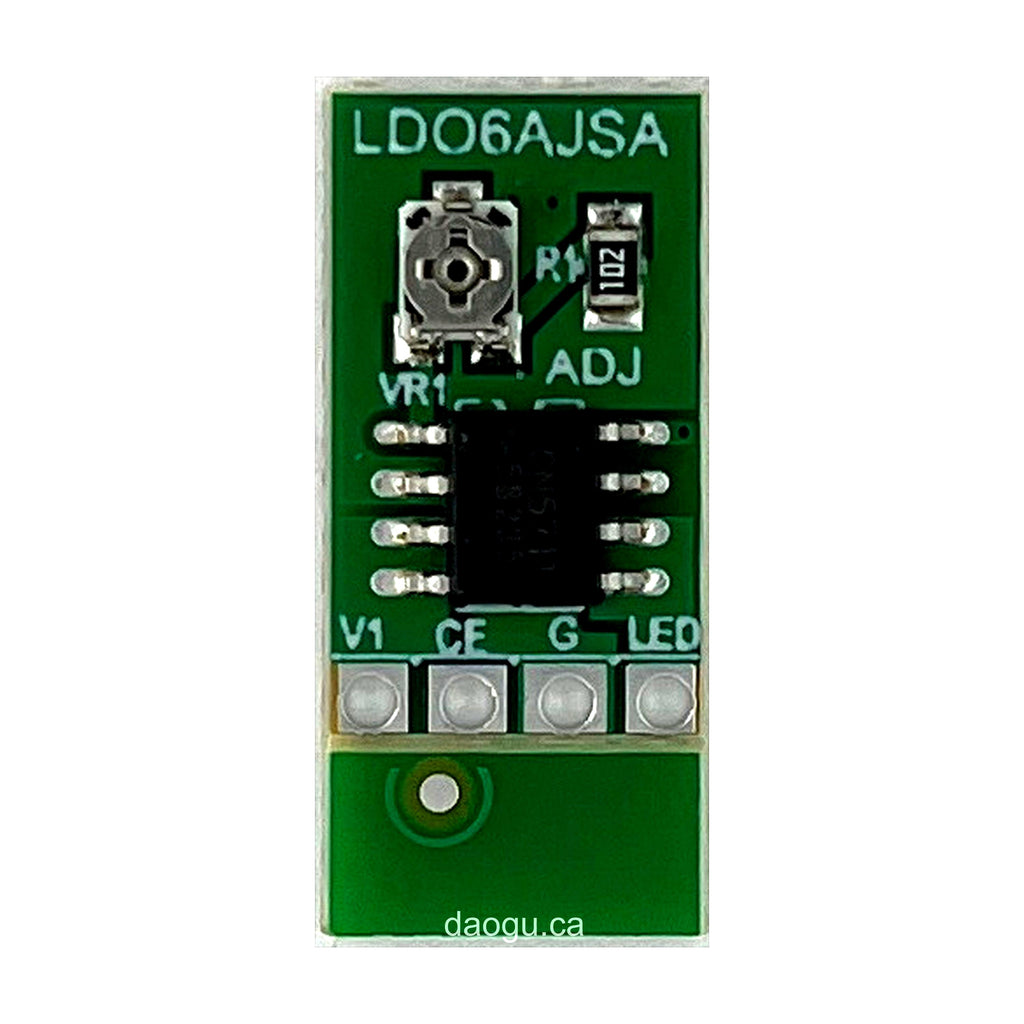

Pin Configuration & Description:

V1:Power Supply Positive Input
CE:Chip Enable / PWM Dimming Control Input (Active High). Can be driven by TTL or CMOS logic levels.
G:Ground (Common)
LED:Output Pin. Connect to the Anode (Positive) of the LED.
