C005 Programmable Delay Timer IC, Triggered Time Delay Chip (2s–1000 Hours)

C005 Programmable Delay Timer IC, Triggered Time Delay Chip (2s–1000 Hours)

$1.50
Skip to product information
C005 Programmable Delay Timer IC, Triggered Time Delay Chip (2s–1000 Hours)
  • C005 Programmable Delay Timer IC, Triggered Time Delay Chip (2s–1000 Hours)
  • C005 Programmable Delay Timer IC, Triggered Time Delay Chip (2s–1000 Hours)
  • C005 Programmable Delay Timer IC, Triggered Time Delay Chip (2s–1000 Hours)
  • C005 Programmable Delay Timer IC, Triggered Time Delay Chip (2s–1000 Hours)
C005 Programmable Delay Timer IC, Triggered Time Delay Chip (2s–1000 Hours)

C005 Programmable Delay Timer IC, Triggered Time Delay Chip (2s–1000 Hours)

$1.50

About This Item:

  • Low Power CMOS Process: Utilizes CMOS technology for low power consumption and is lead-free, environmentally friendly.
  • Output Drive Capability: Low-level output can directly drive LEDs (add a current-limiting resistor). High-level output can drive transistors (add a current-limiting resistor).
  • Adjustable Timing: Timing duration is set via a resistor, with 8*N (N=0,1,2,3) timing multiplier options. Timing range adjustable from 2 seconds up to 1000 hours.
  • Trigger Modes: Supports both trigger timer mode and power-on timer mode by connecting the trigger pin to ground.
  • Output Logic: Standby output is high level. Triggered by a falling edge. Upon trigger, output switches to low level and returns to high level after the delay time ends.

Dimensions: 12mm*12mm

Operating Voltage: 2V - 5V
Shipping Information
  • Free Shipping on orders over $80
  • Orders are shipped from Vancouver, Canada
  • Estimated delivery time: 2–10 business days
  • Delivery time may vary depending on destination and local carrier conditions

Function and Design Description:

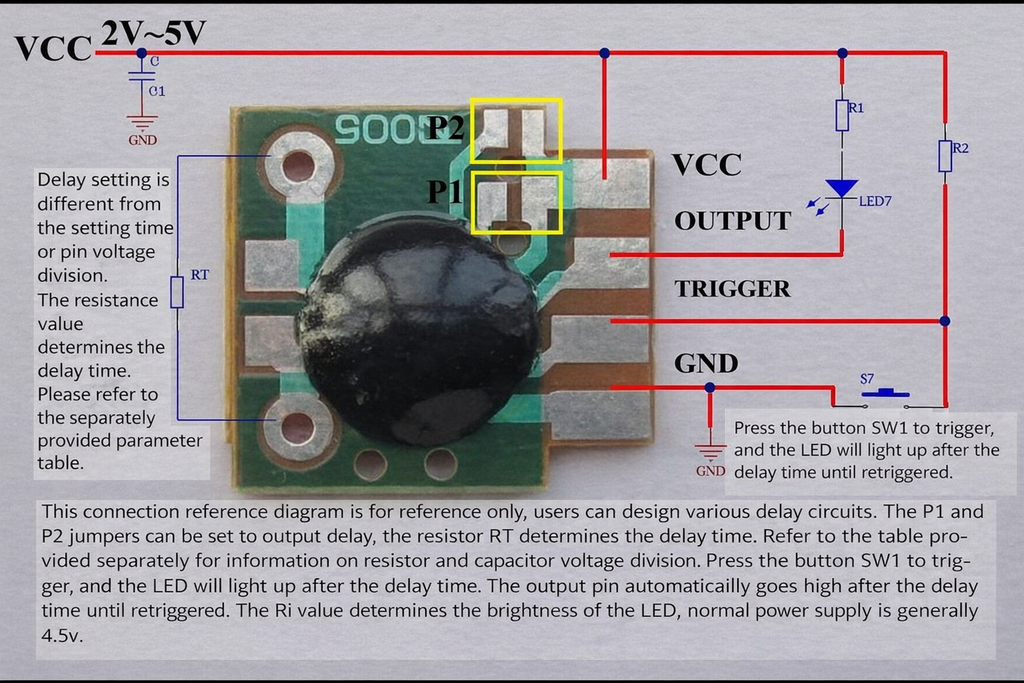

  1. Connect the circuit correctly and set the timing resistor and supply voltage.
  2. Before triggering (power-on state):Output Pin: High level
  3. Trigger Pin: Triggered by a "falling edge". After triggering:Output Pin: Immediately switches to low level.The timing cycle begins.
  4. When the set timing duration ends:Output Pin: Returns to high level, waiting for the next "falling edge" trigger.
  5. Non-Retriggerable: The chip is non-retriggerable. This means any trigger signals received while the output is low (during the timing cycle) are ignored.
  6. Falling Edge Definition: A "falling edge" trigger is defined as the instantaneous change of the trigger pin voltage from high level to low level.
  7. Logic Levels: Generally, high level refers to VCC voltage, and low level refers to 0-0.3V or GND. Triggering is valid as long as these level requirements are met.
  8. Trigger Sources: The trigger pin can be activated by connecting a tactile switch to ground, a microcontroller I/O pin, or other digital circuits capable of generating a "falling edge".
  9. Power-On Trigger Option: Can be configured for power-on triggering by shorting the trigger pin to ground. Upon power-up, the chip triggers immediately, and the output returns to high level after the set time. It can then be triggered again by a falling edge.

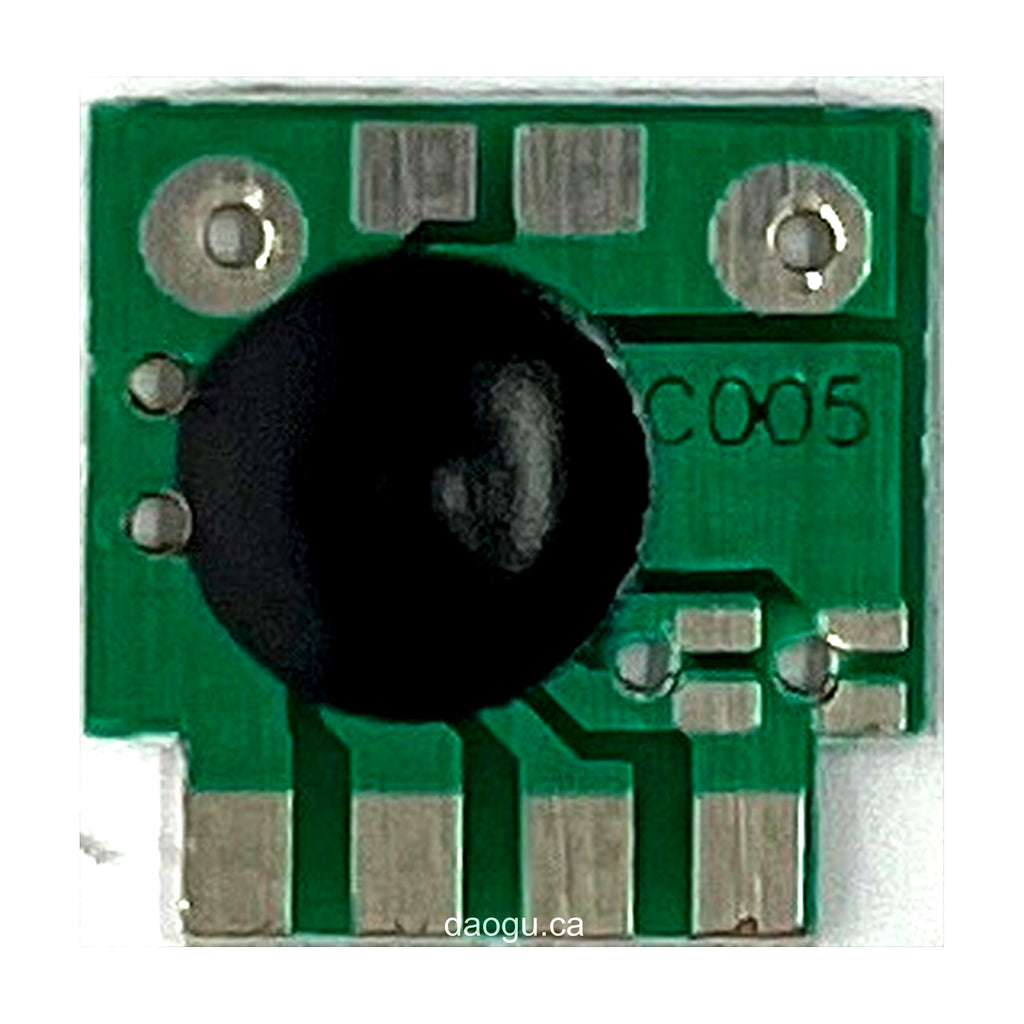

Pin Description (from bottom to top in the diagram):

  • PIN1: Power Supply Negative (GND)
  • PIN2: Trigger
  • PIN3: Output
  • PIN4: Power Supply Positive (VCC)

Timing Multiplier Settings:

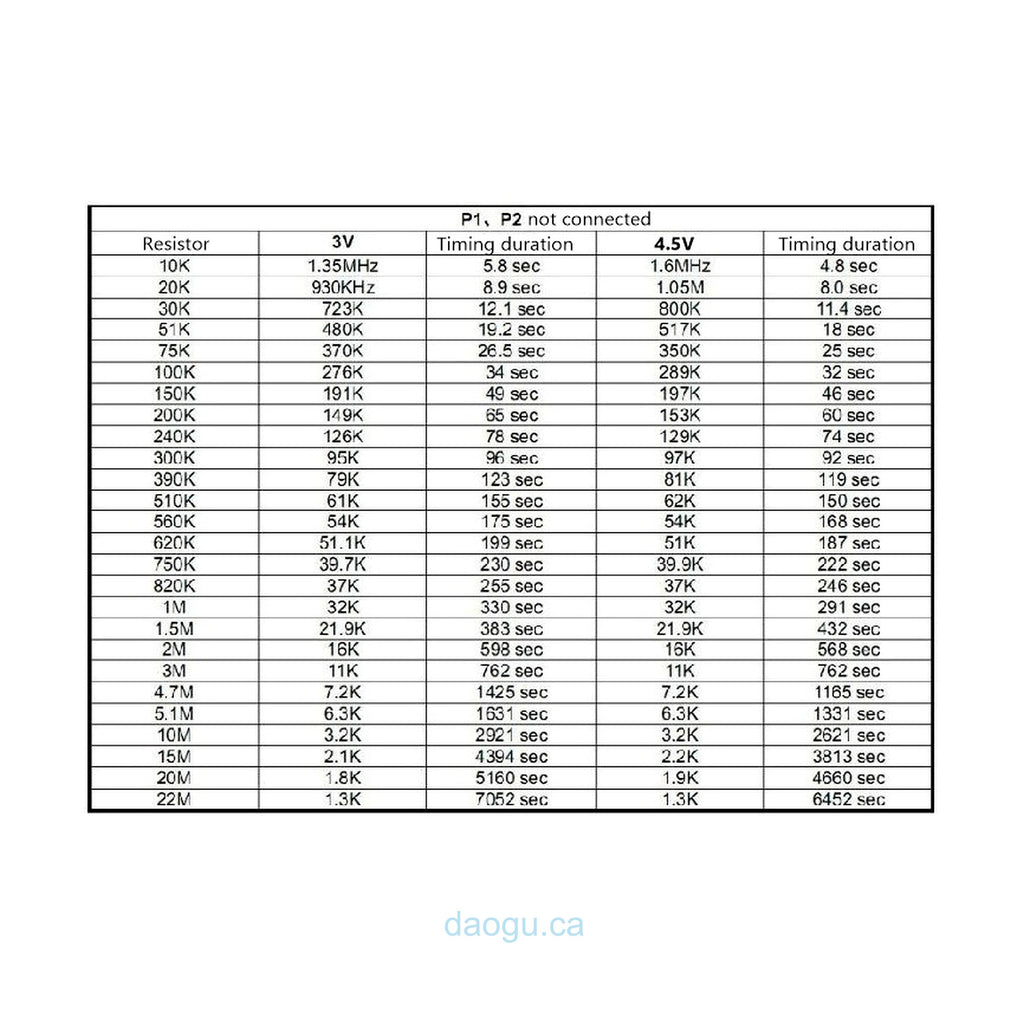

  • Shorting P1 (short the two small pads): Timing duration = (Resistor table time) x 8
  • Shorting P2 (short the two small pads): Timing duration = (Resistor table time) x 64
  • Shorting both P1 and P2: Timing duration = (Resistor table time) x 512
