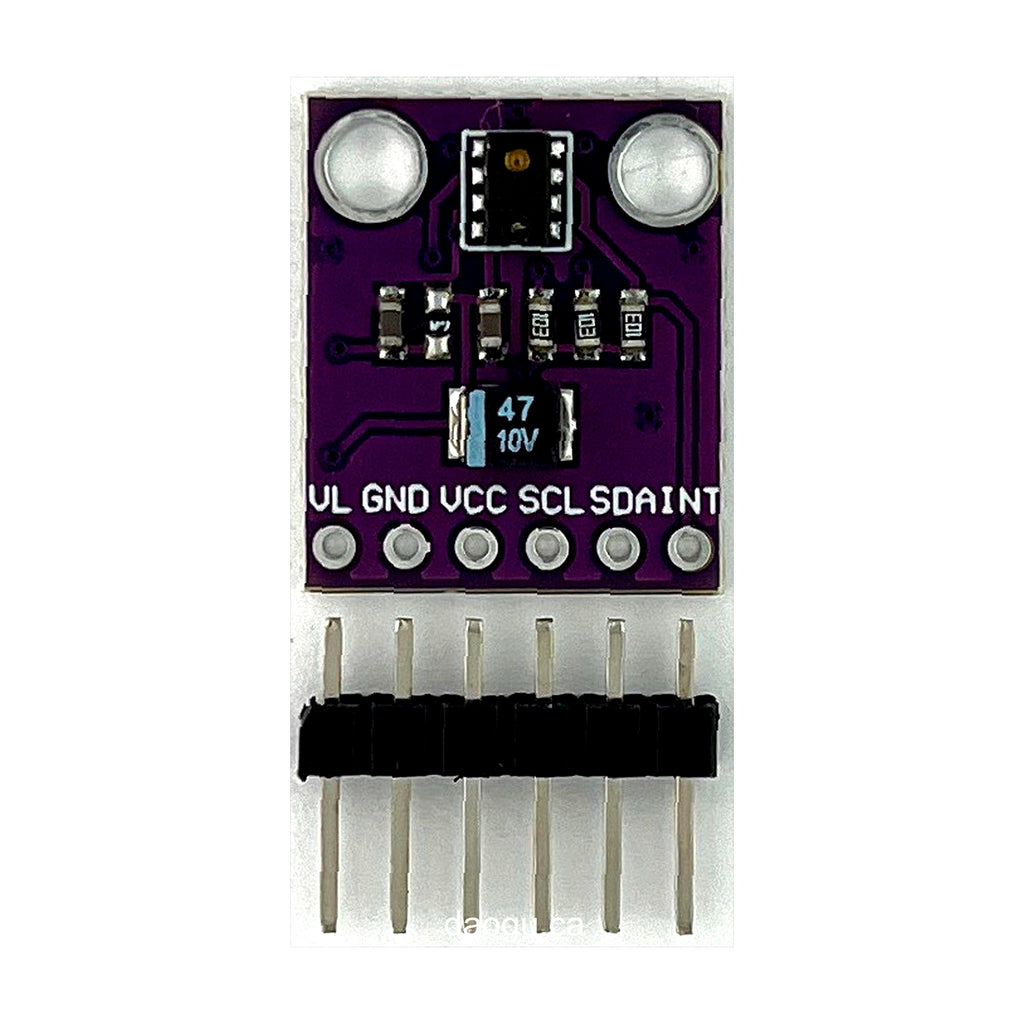

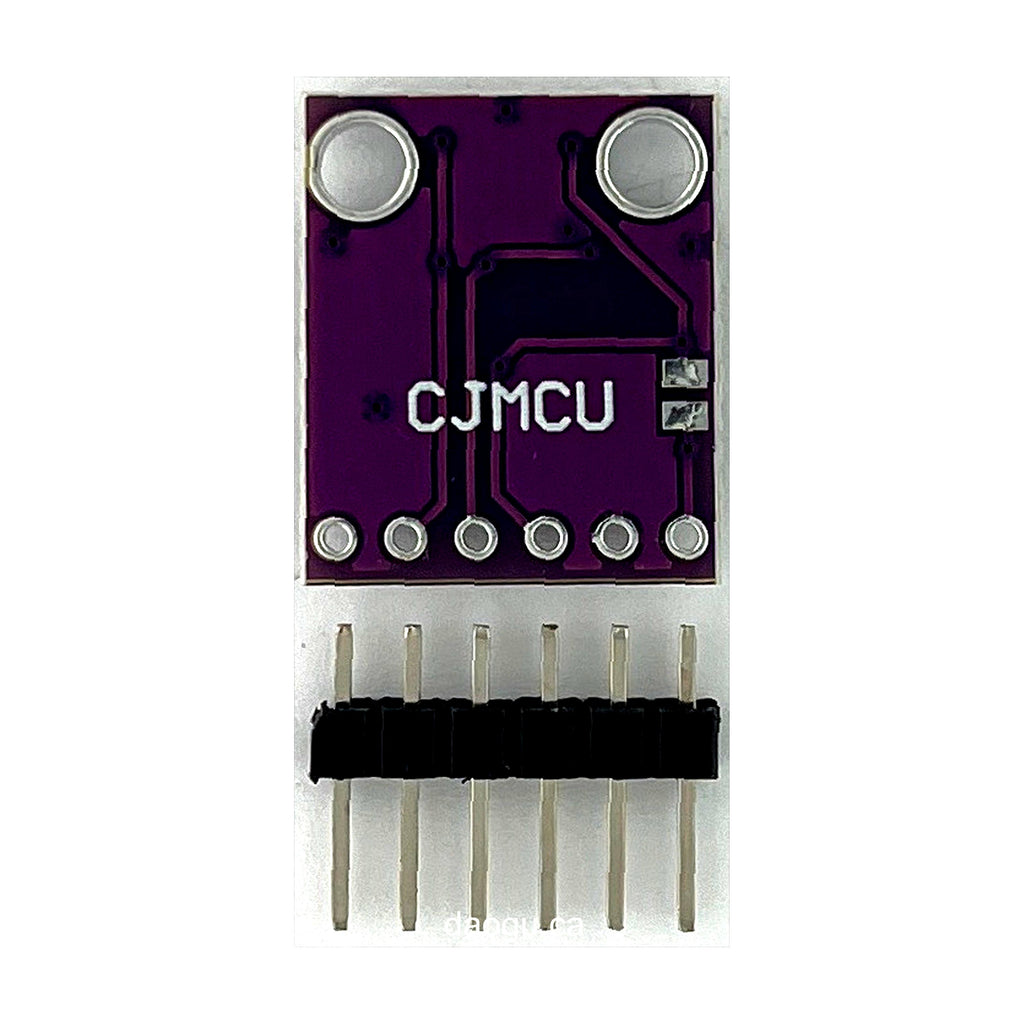

APDS-9930 Ambient Light Sensor & Proximity Module

The APDS-9930 provides an I²C-compatible Ambient Light Sensor (ALS) and an infrared (IR) LED proximity sensor in a single 8-pin package. The ALS uses dual photodiodes to approximate the human eye's response to light, providing low-lumen performance down to 0.01 lux. Its high sensitivity enables operation behind dark glass. The proximity sensor is fully calibrated to detect objects up to 100 mm, eliminating the need for factory calibration of end devices or sub-assemblies. Proximity detection functions effectively across diverse conditions, from bright sunlight to dark rooms. The module incorporates micro-optics lenses for efficient transmission and reception of IR energy, reducing overall power consumption. Furthermore, an internal state machine allows the device to enter a low-power mode, achieving extremely low average power consumption.

Features:

• Optical module integrating ALS, IR LED, and proximity detector.
• Ambient Light Sensing (ALS):Approximates human eye visual response.Programmable interrupt function with upper and lower thresholds.Up to 16-bit resolution.High sensitivity for operation behind dark glass.Low-lumen performance down to 0.01 lux.
• Proximity Detection:Fully calibrated for detection up to 100 mm.Integrated IR LED and synchronized LED driver.Eliminates need for factory calibration of the proximity sensor.
• Programmable Wait Timer:Wait state power consumption: 90µA typical.Programmable range from 2.7 ms to over 8 seconds.
• I²C Interface Compatible:Supports up to 400kHz (I²C Fast Mode).Dedicated interrupt pin.
• Sleep Mode Power: 2.2µA typical.
• Compact Package: 3.94mm (L) x 2.36mm (W) x 1.35mm (H).

Applications:

• Dimmable mobile phone backlighting.
• Disabling mobile phone touchscreen.
• Notebook/monitor presence detection.
• Automatic hands-free call mode activation.
• Automatic menu pop-up.
• Digital camera eye sensor.
