0.96 inch IIC Communication Small OLED Display Module

0.96 inch IIC Communication Small OLED Display Module

Blue
$5.99
Skip to product information
0.96 inch IIC Communication Small OLED Display Module

0.96 inch IIC Communication Small OLED Display Module

$5.99
Color

About This Item

  • Crystal Clear Display: 0.96-inch, 128x64 resolution, self-luminous blue display with high contrast.
  • Wide Compatibility: Works with Arduino, Raspberry Pi, STM32, ESP32, etc. Uses I2C communication.
  • Low Power: Consumes only 0.04W to 0.08W. Supports DC 3.3V-5.0V.

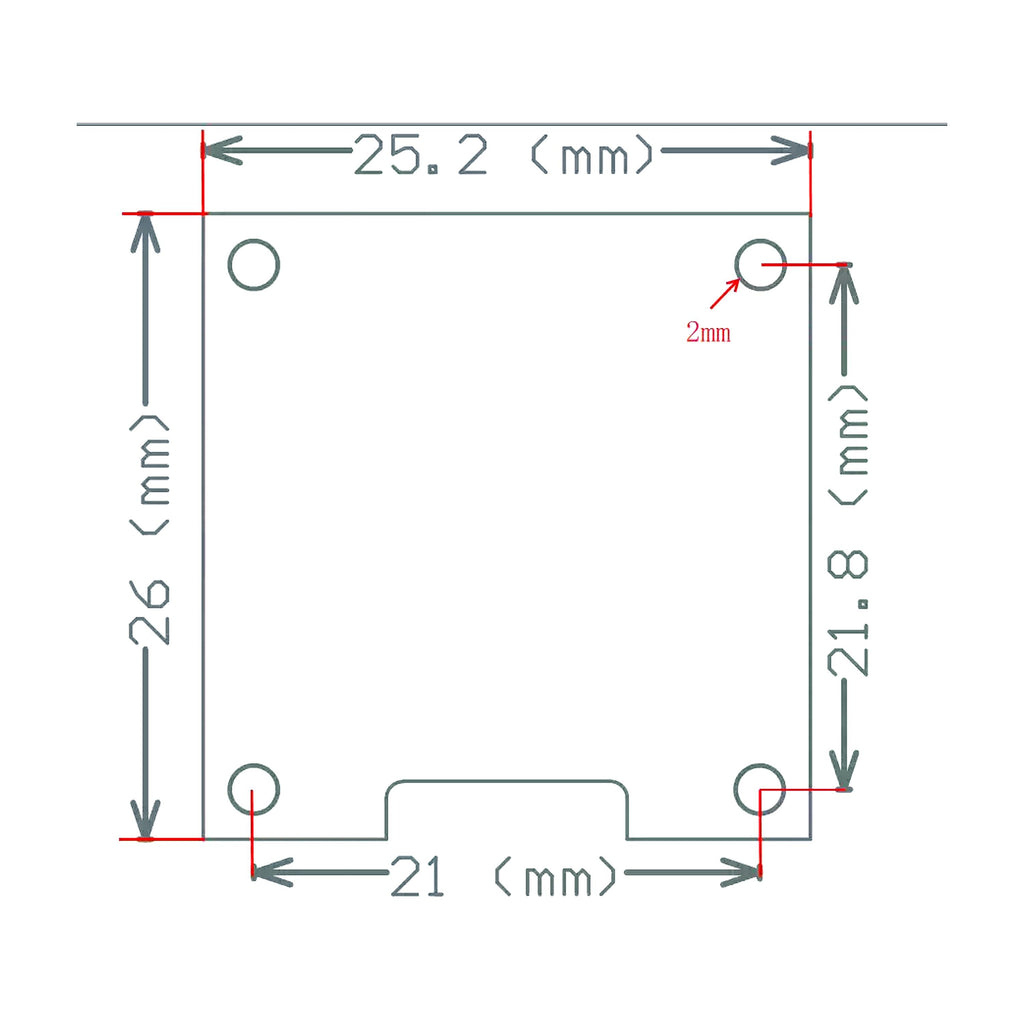

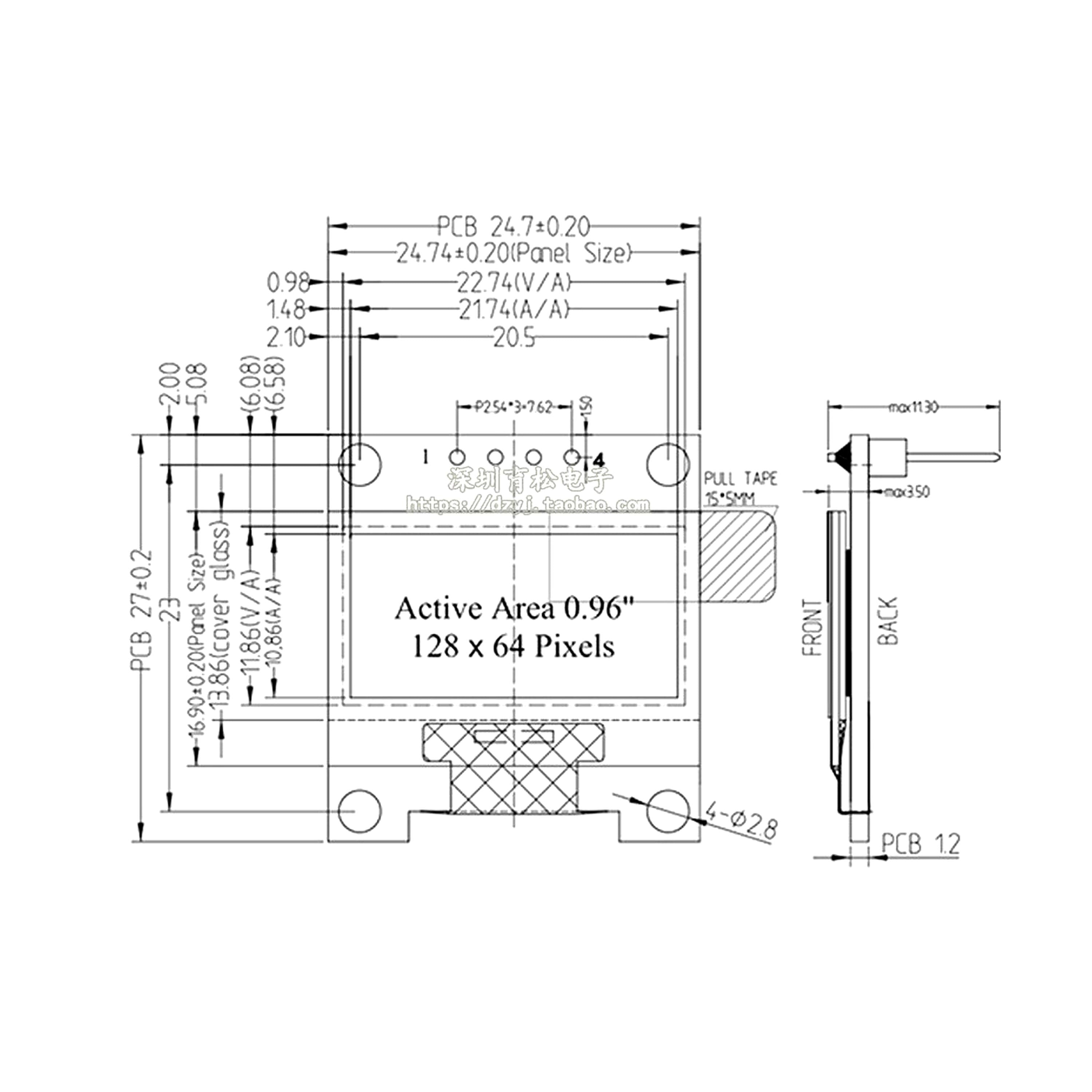

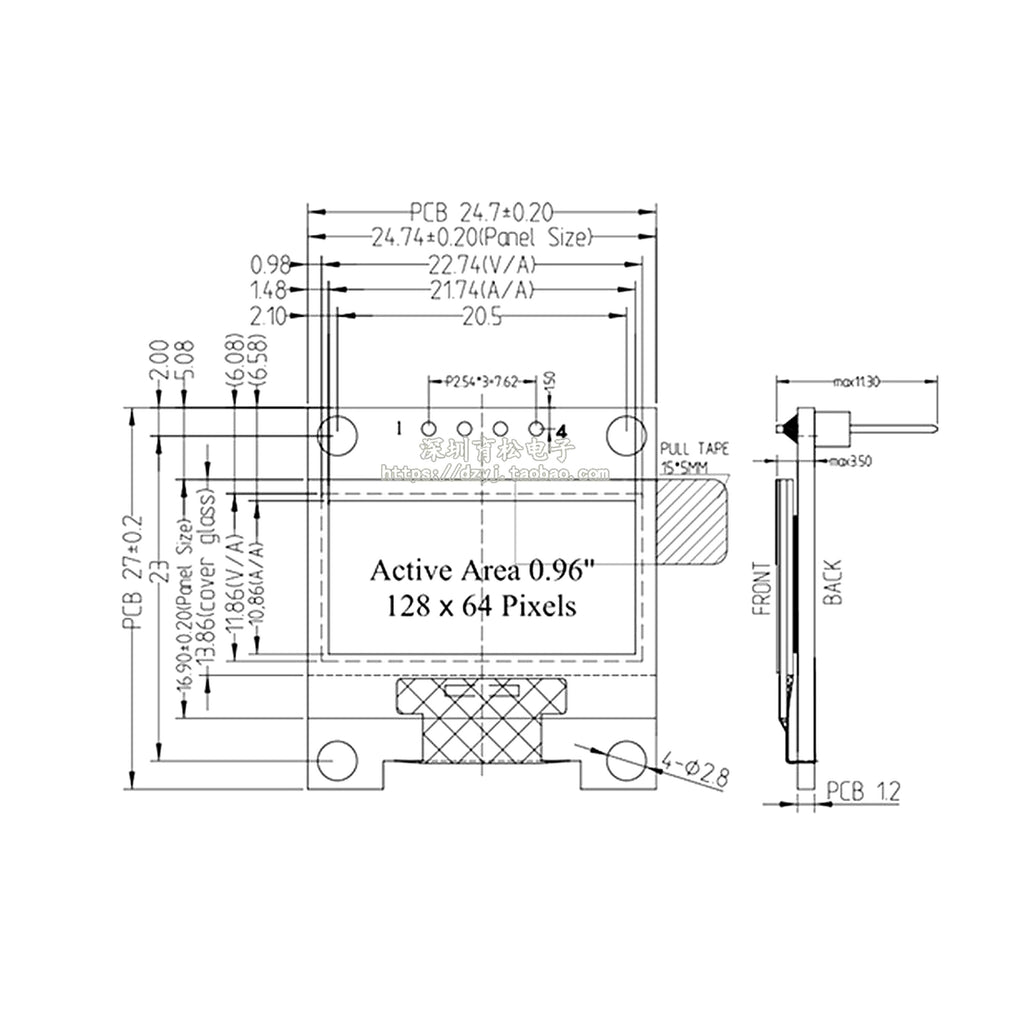

  • Compact Size: Small footprint (24.7mm x 27mm), perfect for tight spaces.
  • Easy Setup: Simple wiring with I2C pins (SCK, SDA). Plug-and-play driver IC.
Shipping Information
  • Free Shipping on orders over $80
  • Orders are shipped from Vancouver, Canada
  • Estimated delivery time: 2–10 business days
  • Delivery time may vary depending on destination and local carrier conditions

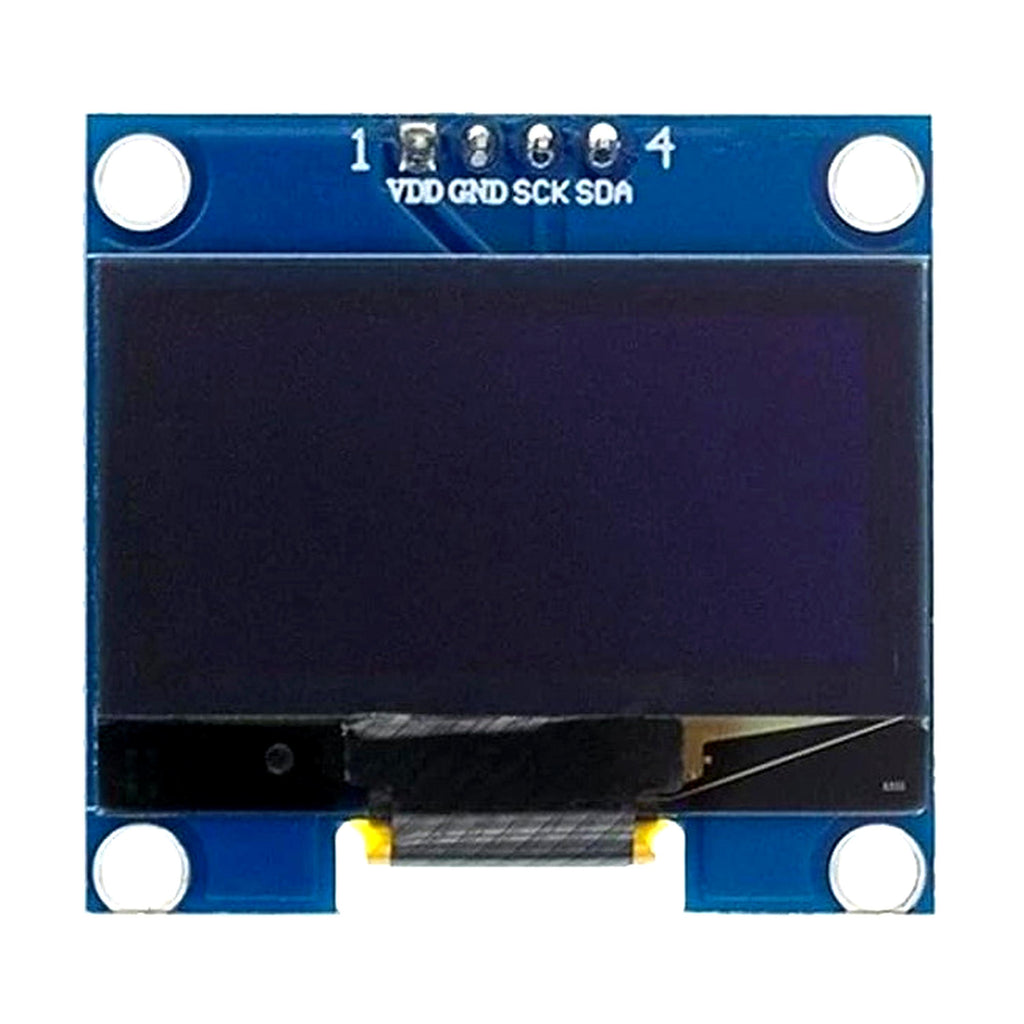

Pin definition:

  • GND: Ground
  • VDD: 3.3-5V
  • SCK: I2C clock
  • SDA: I2C data


Driver Chip: SSD1315
